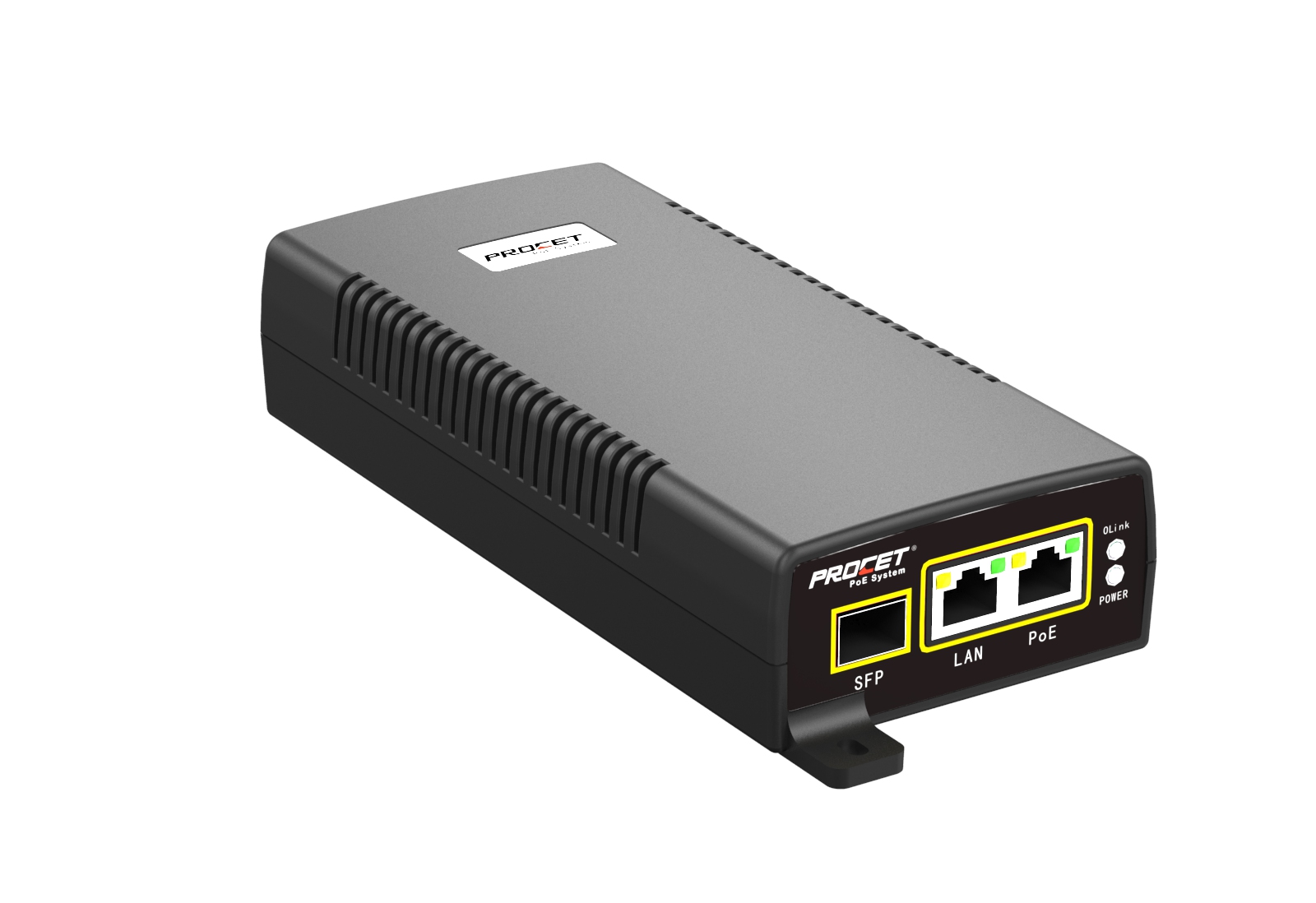

PT-PSE106GBR-S is a SFP 802.3bt PoE Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.
Designed for powered 60W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies with IEEE802.3bt and backward compatible with IEEE802.3af/at standard. It supports 1000Mbps of data speed. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

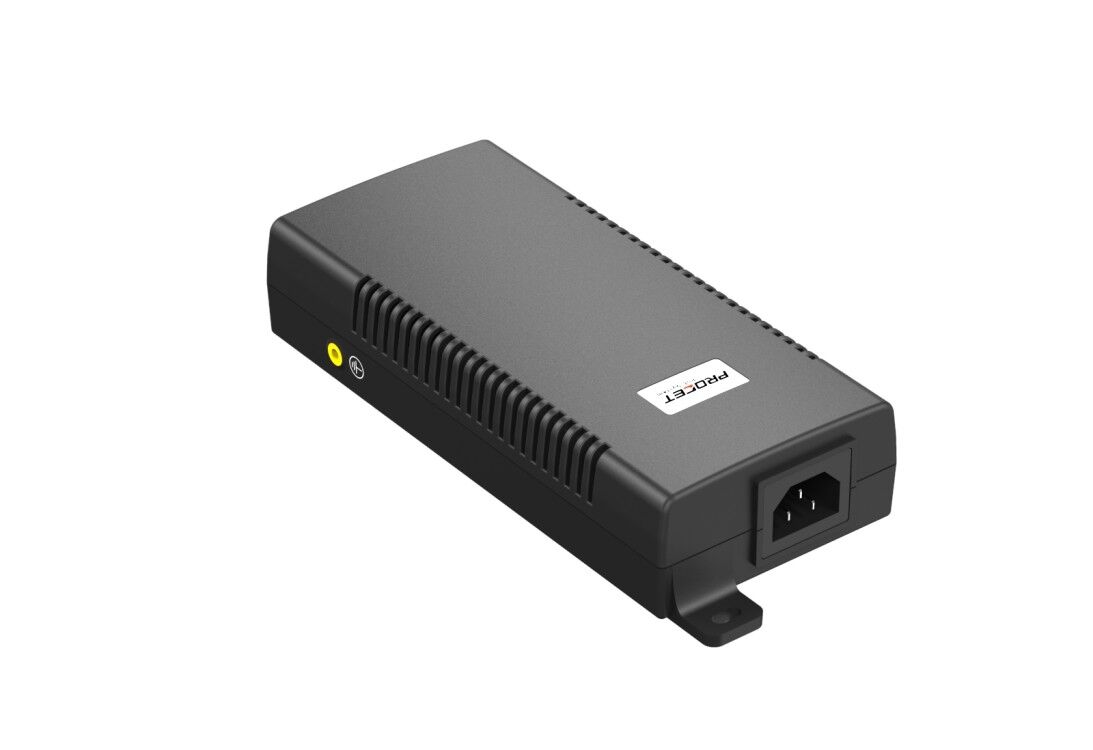

Enclosed in an IP40 plastic case, designed for indoor use. It operates with an input voltage of 100-240Vac 1.5A. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | bt standard 60W indoor PoE injector |
| Part Number | PT-PSE106GBR-S |

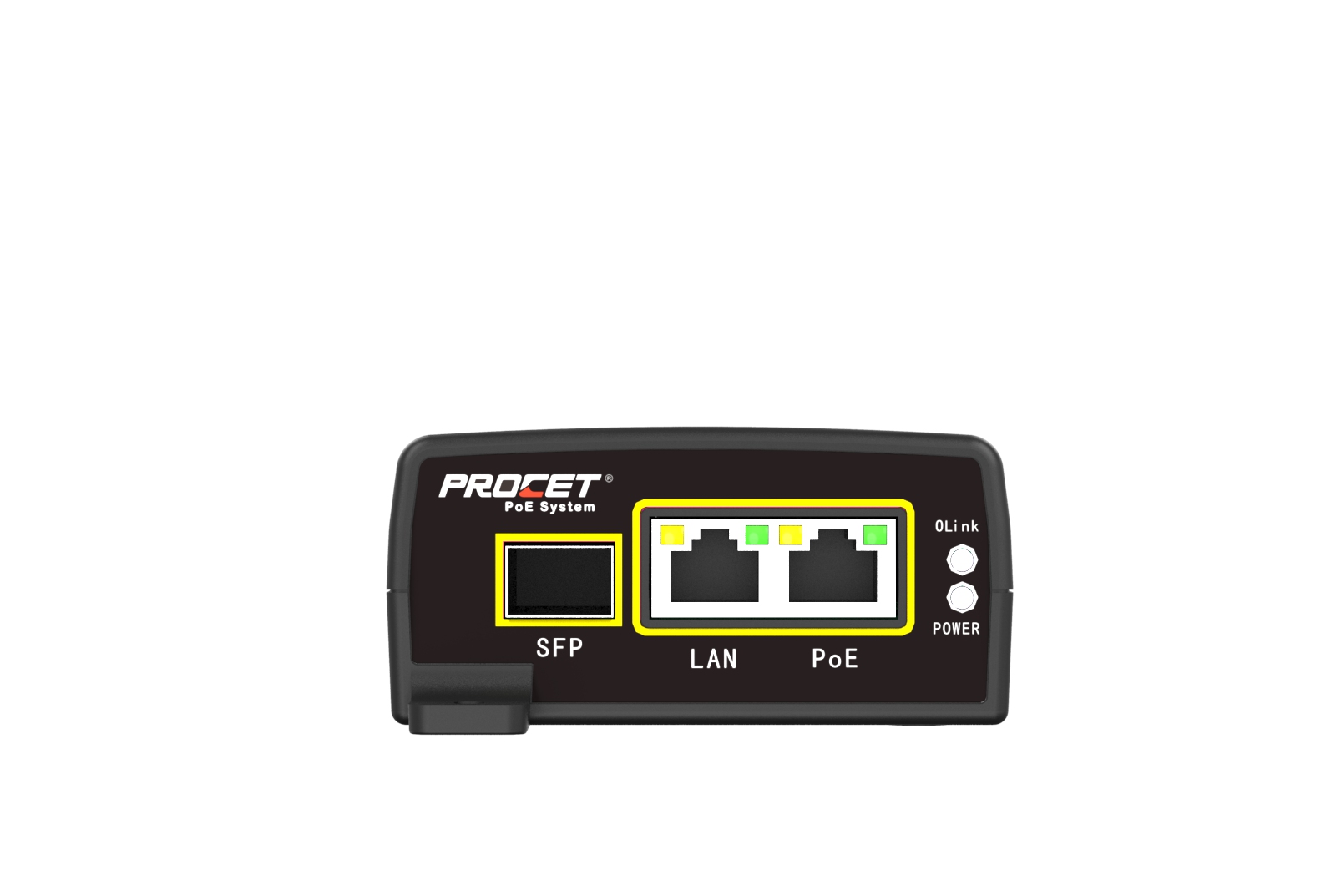

| Ports condition | SFP Port*1, LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| PoE output | 60W |
| Data rates | 1000 Mbps |
| Power input | 100-240Vac 1.5A |
| Power output | 55Vdc 1.1A |
| Regulatory Compliance | IEEE 802.3bt RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 178.71mm X 85mm X 41mm Weight: 500g（1.10lb） |
| Safety Approvals | CE, FCC |
