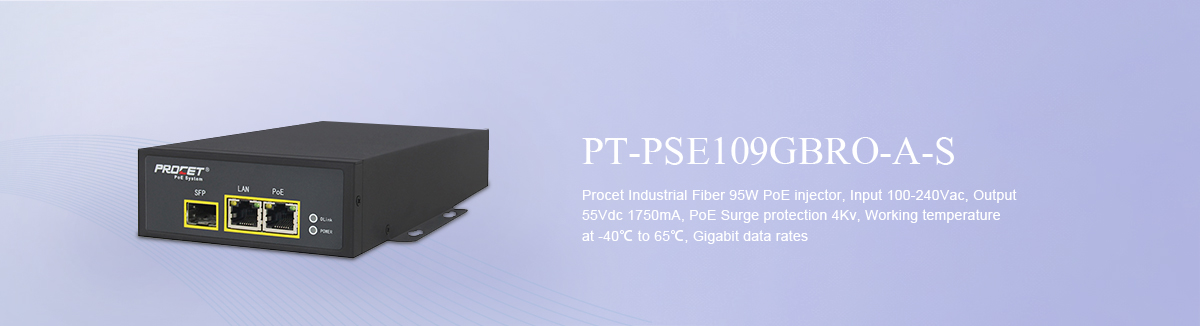

PT-PSE109GBRO-A-S Industrial Rated Fiber PoE injector specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP20 high-impact metal case, but can work outdoor by covered with waterproof case
After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Surge protection both at PoE port and AC port 1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates AC power cord with optional US or EU plug or other standard plug IP20 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PSE109GBRO-A-S |
| Ports condition | SFP Port*1, LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |
| Input | AC Input Voltage: 90 to 264Vac(100 to 240Vac Rated) AC Input Current: 2.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, SFP slot*1 Size: 214 X 134 X 41mm Weight: 920g（2.0lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator : Green SFP fiber indicator: Green PoE data indicator: Yellow |
| Safety Approvals | cUL/UL, CE, CB, FCC, KCC |
Standing Stock
| Product Order Info.(Model) | PT-PSE109GBRO-A-S |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
