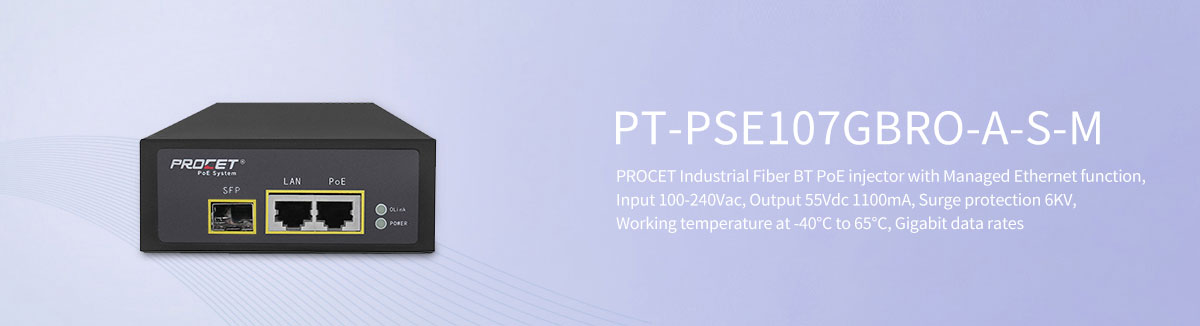

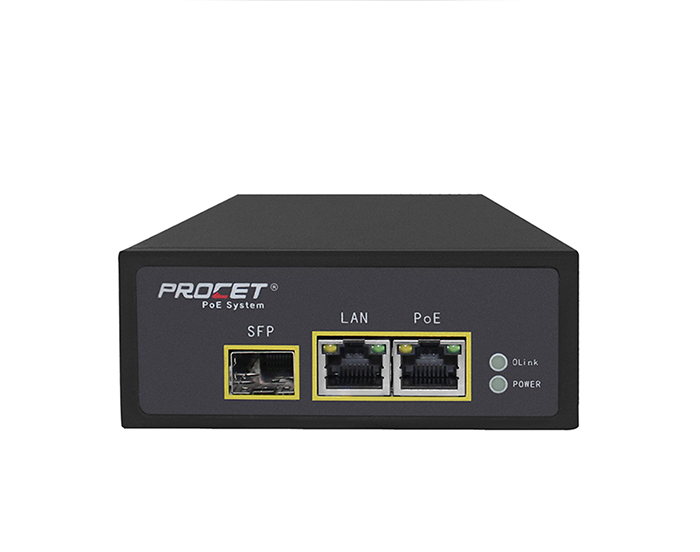

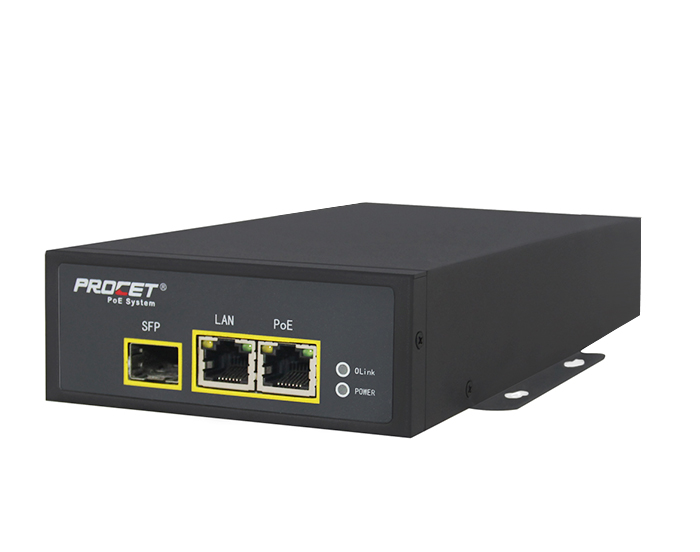

PT-PSE107GBRO-A-S-M, a single port PoE Injector with Managed Ethernet function. Supports IEEE 802.1Q VLAN and port-based VLAN.PT-PSE107GBRO-A-S-M is an indoor rated fiber PoE midspan converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc.. Enclosed in an IP20 high-impact metal case but can work outdoor by covered with waterproof case.
After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 4KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case With Managed Ethernet function. Supports IEEE 802.1Q VLAN and port-based VLAN. Extend temperature from -40℃ to 65℃ Lighting Protection at PoE port SFP fiber Optical Slot: 1000Base-FX to 1000Base-TX, support single-mode or multi-mode transceivers RJ45 Port: 1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover IP20 high-impact metal enclosure AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs Equipped both with LAN and SFP slot |
| Part Number | PT-PSE107GBRO-A-S-M |
| Ports condition | SFP Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3af/at/bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc 1100mA User Port Power: 60W Guaranteen |

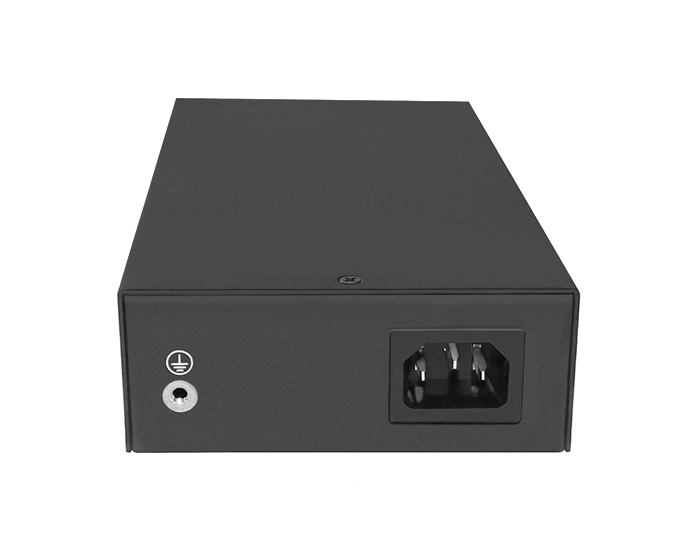

| Input | Input Voltage:100-240Vac 1.5A 50/60Hz |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us):4KV Differential mode surge protection (10/700us): 1.5KV |

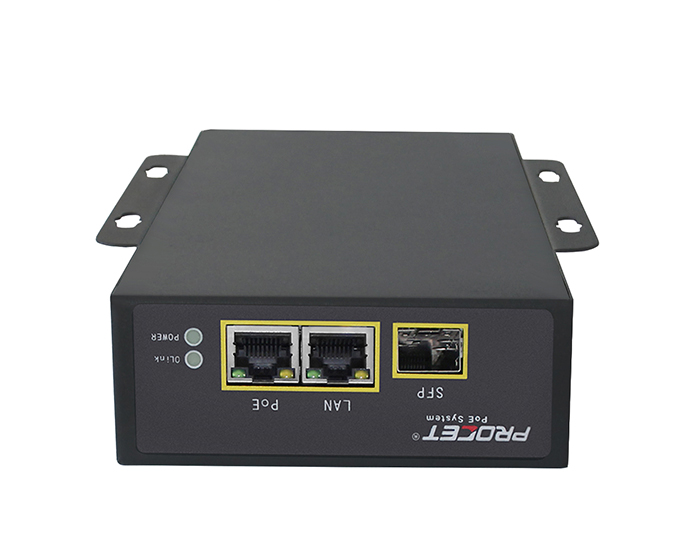

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Size: 203mm X 130mm X 41mm Weight: 910g |
| LED Indicator | - Link/ACT LED: Yellow&Green - SFP LED: Green - PoE LED: Green - AC Power LED: Green |
