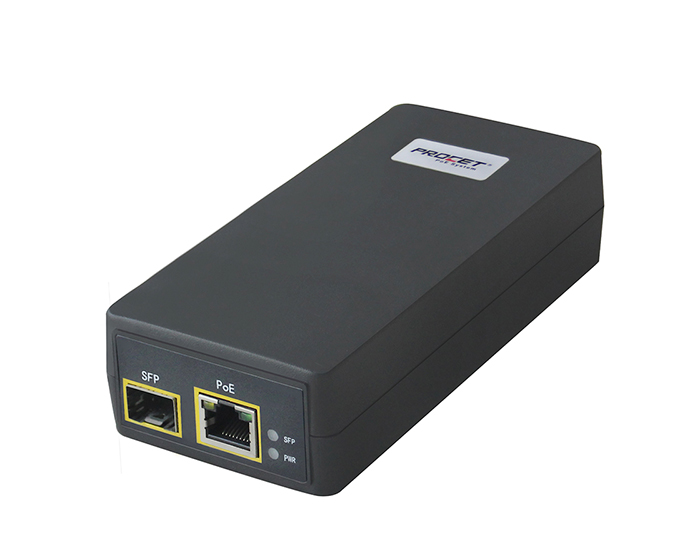

PT-PSE110G-S Indoor SFP Fiber PoE injector which has a flexible SFP transceiver ports for uplink. It provides 55Vdc, 0.55A power for remote PDs over 2 pairs output.It supports both 10/100Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless access points,network cameras, VoIp phones and other high power Ethernet terminals. It is compliant with IEEE802.3at and also compatible and safe to use with any IEEE802.3af compliant terminals.
designed for indoor use. It works with input voltage of 100-240Vac It has detection chip inside,which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected.The effective distance is 100 meters over Cat5e/Cat6 ca-bles. It has two mounting hole on the back, can be easily hung on the wall.
The effective distance is 100 meters over Cat5e/Cat6 ca-bles. It has two mounting hole on the back, can be easily hung on the wall.
Specifications
| Parameter | Description |
| Key Features | SFP PoE injector 30W IEEE802.3AT |
| Part Number | PT-PSE110G-S |
| Ports condition | LAN Port*1, SFP Output Port*1,AC Input Port*1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000Mbps SFP:1000Mbps |
| Output | Pin Assignment and Polarity: 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen |

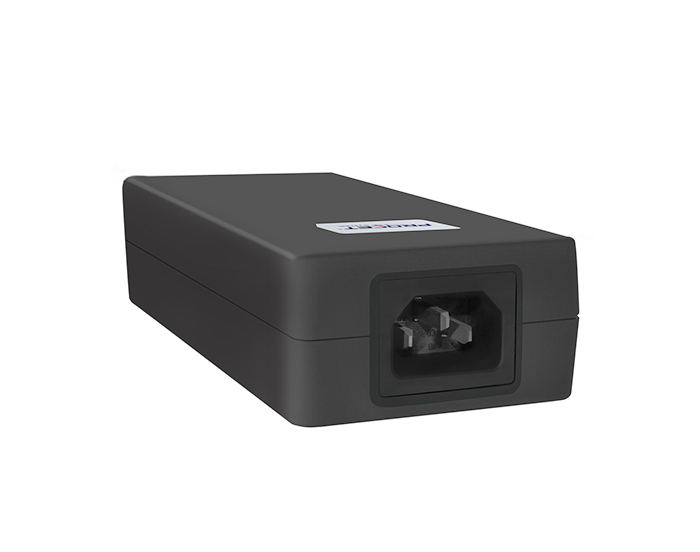

| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

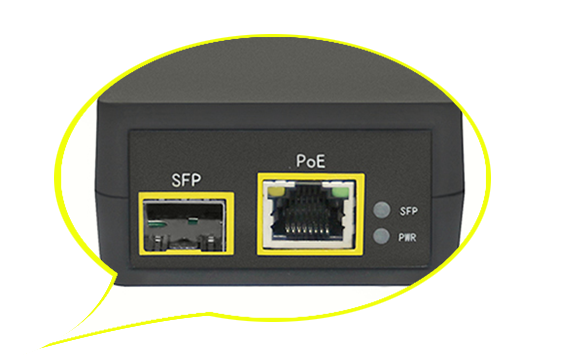

| Mechanical Characteristics | Case: Plastic Color:black IP Rated: IP40 Connectors: Shielded RJ-45*1+SFP port*1 Size: 146mm X 67mm X 36.5mm Weight: 245g(0.83lb) |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green SFP Fiber Indicator: Green PoE Data Switching Indicator: Yellow |
| Safety Approvals | CE, FCC CFR47 Part 15, EN55024, EN55032 |
