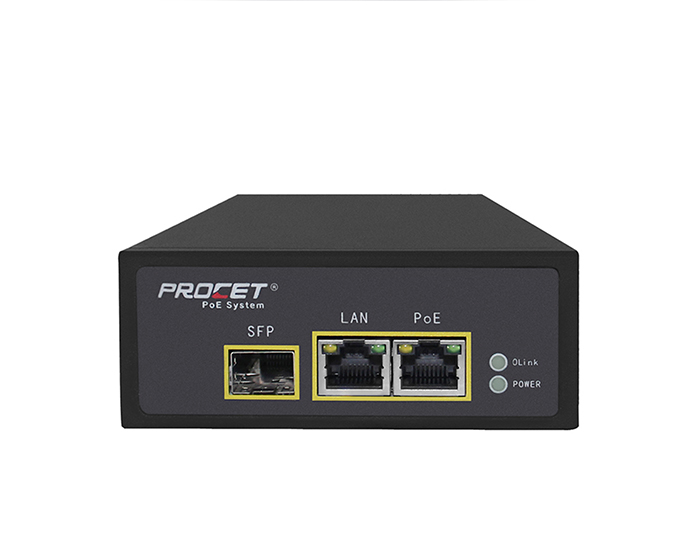

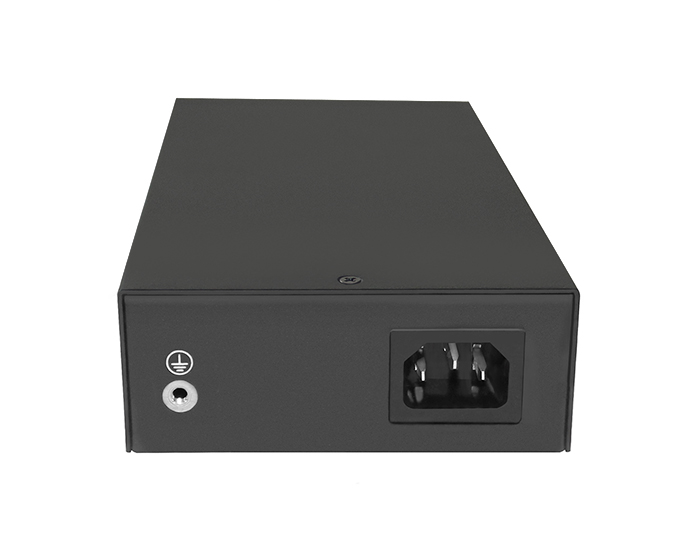

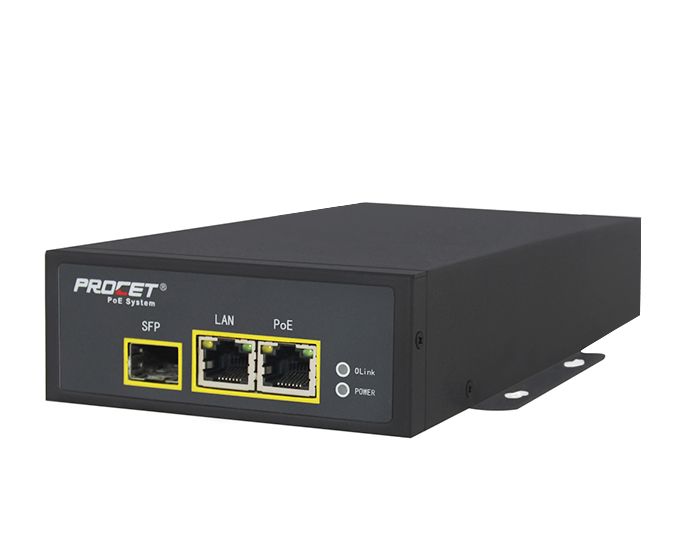

PT-PSE107GHRO-A-S Fiber Optic PoE Injector specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc.. Enclosed in an IP20 high-impact metal case but can work outdoor by covered with waterproof case.
After negotiating PoE++ standard PoE, the single PoE output port delivers 55Vdc, 1.36A up to 75W power with 4KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Extend temperature from -40℃ to 65℃ Lighting Protection both at AC and PoE port SFP fiber Optical Slot: 1000Base-FX to 1000Base-TX, support single-mode or multi-mode transceivers RJ45 Port: 1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover IP20 high-impact metal enclosure AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs Equipped both with LAN and SFP slot |
| Part Number | PT-PSE107GHRO-A-S |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1, SFP Port*1 |
| Regulatory Compliance | PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 75W Guaranteen |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) AC Input Current: 1.5A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, SFP slot*1 Size:204 X 130 X 41mm Weight: 737g（1.62lb） |
| LED Indicator | Power Indicator : Green PoE Load Indicator : Green SFP fiber indicator: Green PoE data indicator: Yellow |
