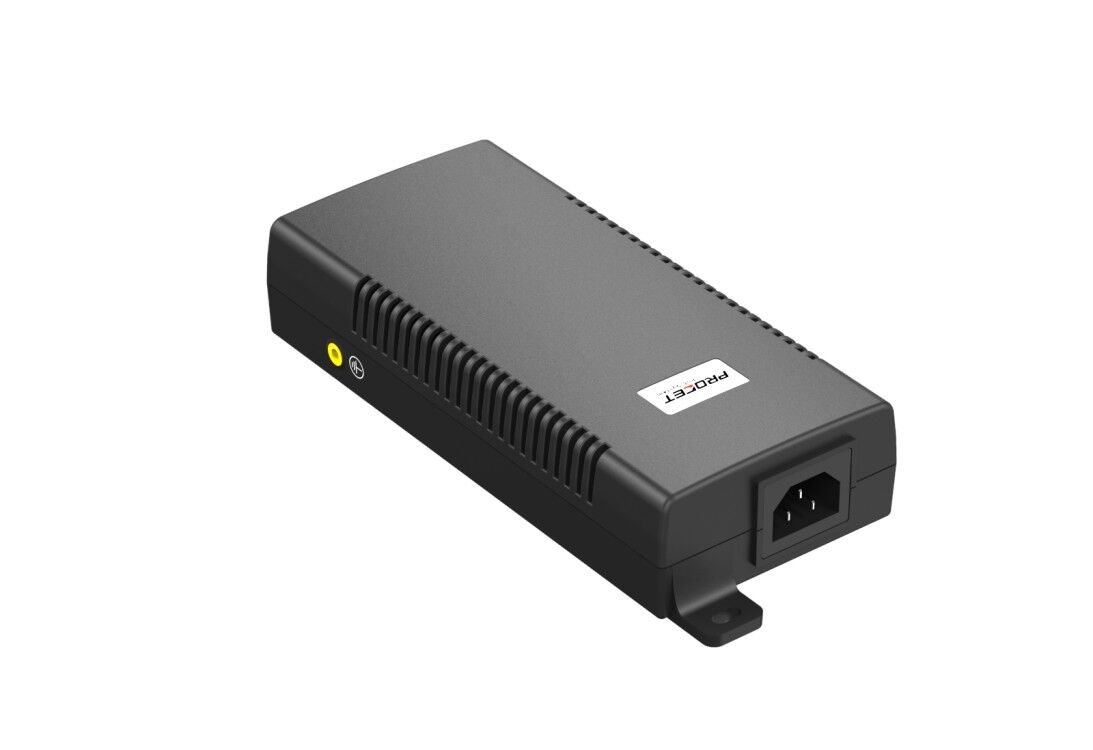

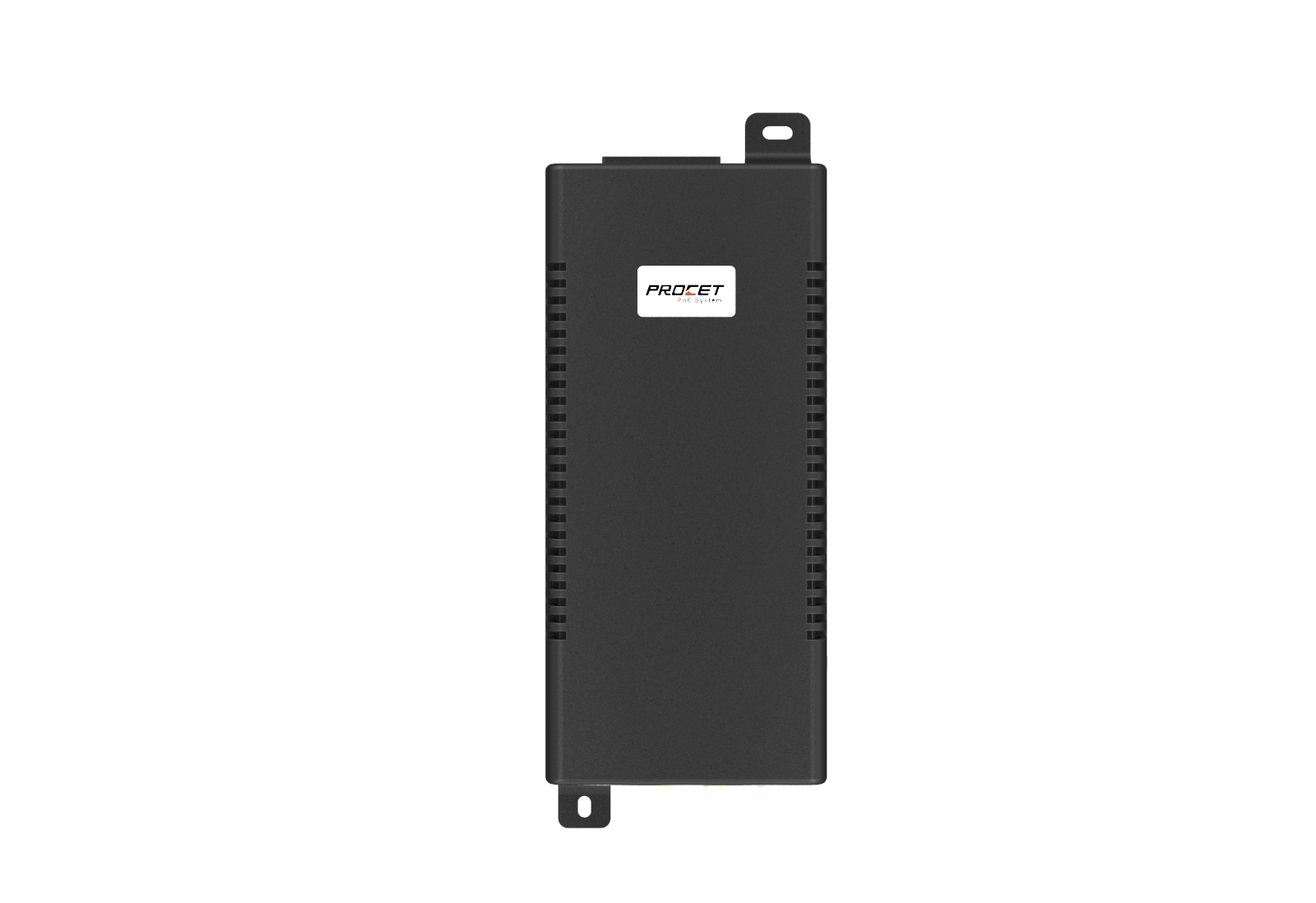

PT-PSE106GBR-A-S is a 60W SFP PoE++ Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.
Designed for powered 60W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies with PoE++ and backward compatible with IEEE802.3af/at/PoE++ standard. It supports 1000Mbps of data speed. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 plastic case, designed for indoor use. It operates with an input voltage of 100-240Vac 1.1A. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | PoE++ 60W indoor fiber PoE injector Extend temperature from -40℃ to 55℃ Lighting Protection both at PoE and AC port Gigabit data rates IP20 high-impact metal enclosure |
| Part Number | PT-PSE106GBR-A-S |

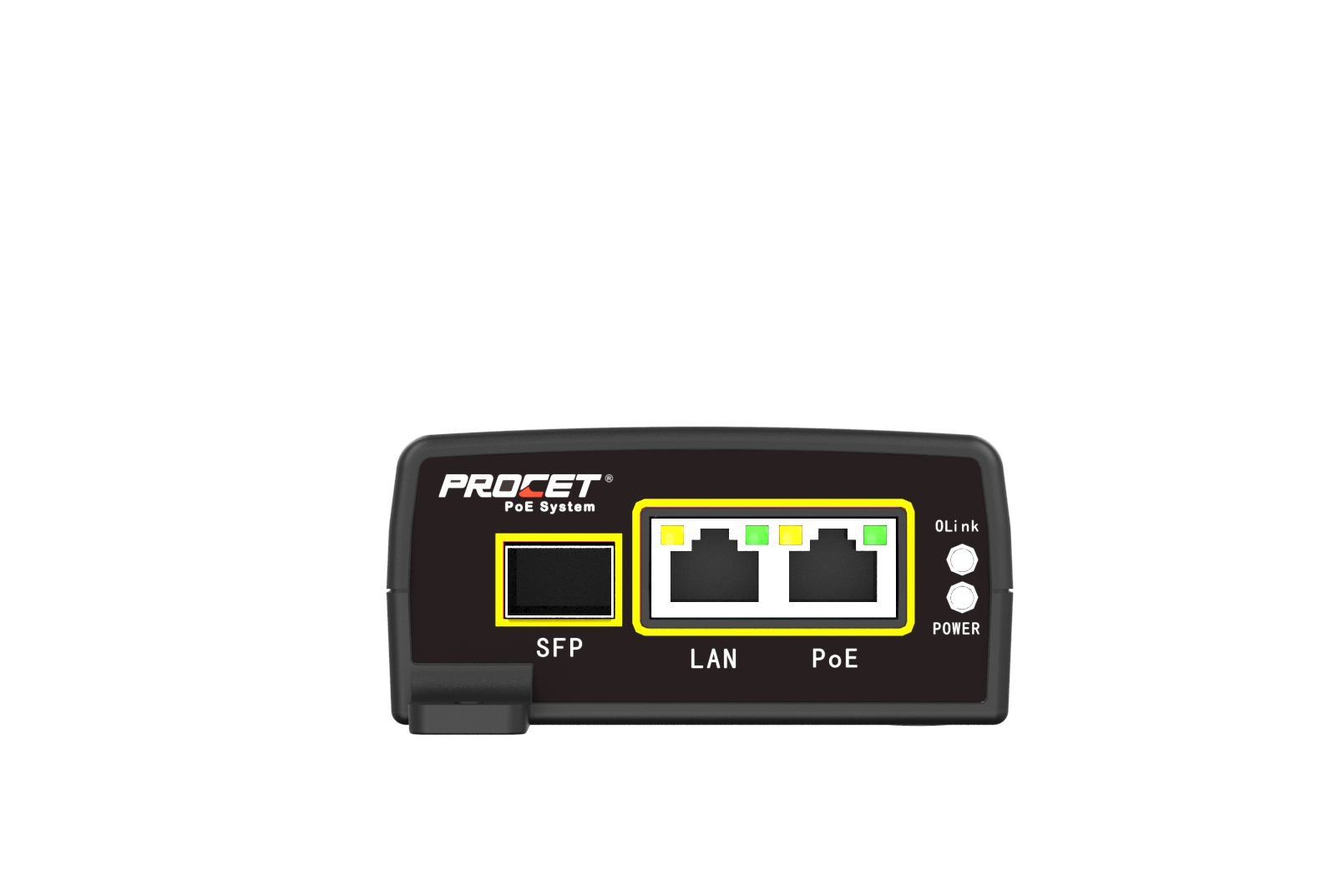

| Ports condition | SFP Port*1, LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000Mbps |
| Output | Output: 55Vdc 1100mA 60W |
| Input | 100-240Vac 1.5A |
| Working Environment | Operating Temperature: -40℃ to 55℃ Operating Humidity: 20% to 90%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 178.71mm X 85mm X 41mm Weight: 500g（1.10lb） |
