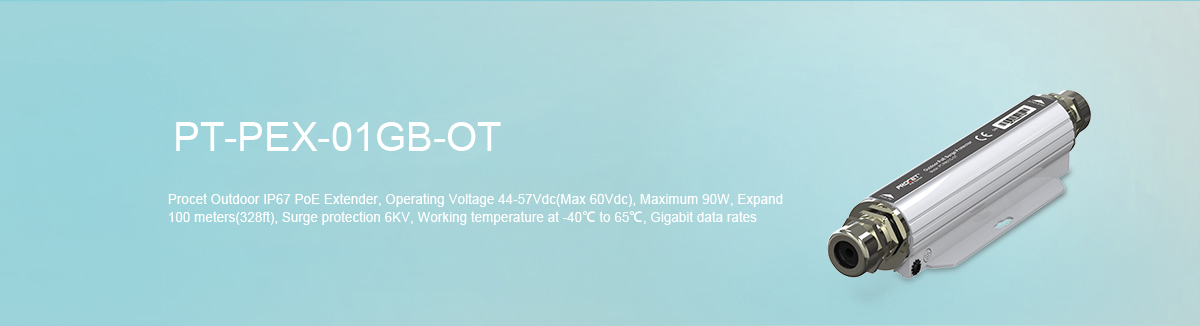

PT-PEX-01GB-OT Outdoor 90W PoE Extender

PT-PEX-01GB-OT is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 90W(Max) PoE PDs,such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders, but the output power can be up to 90W for your PD with one extender

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesExpand 100M with one PoE extender
Lighting Protection
IP67 outdoor use
Wide temperature at -40
to 65 even up to 85
No local power is needed
Gigabit data rates
Part NumberPT-PEX-01GB-OT
Ports conditionPoE In Port*1, PoE Out Port*1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
Input & OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Operating Voltage :44-57Vdc, (Max 60Vdc)
Maximum Operating DC Current :1.1A for 4 pairs,
                                                       Maximum 90W
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 6KV
Differential Mode Protection Level(10/700us): 1.5KV
Clamping Voltage(Line to GND): 300V
Clamping Voltage(Line to Line): 10V
Insertion Loss @10MHz/100MHz
Return Loss @10MHz/100MHz: -20db
Response Time
Mechanical CharacteristicsCase: Aluminium alloy
Color: White
Mounting: Wall-mounted
IP Rated: IP67
Connectors: Shielded RJ-45
Size: 209mm X 53mm X 37.5mm
Weight: 410g
Warranty2 year


Standing Stock

Product Order Info.(Model)PT-PEX-01GB-OT
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty:20pcs/carton
Volume:0.06 m³
Packing: Export Carton
Pallet size:110 x 110cm
