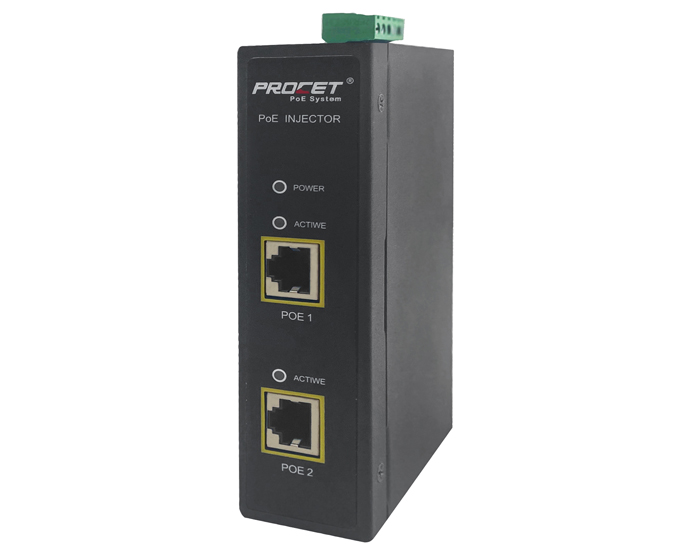

PT-PSE105GW-E-10 DIN 60W 10G PoE injector

PT-PSE105GW-E-10 is a single port midspan Injector with 2 Pair PoE up to 60 watts of power at 55Vdc, at 1.1A with 6Kv surge protection.Designed for the PoE++(bt) powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 2.5GbE/5GbE/10GbE NBase-T.


Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3bt compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

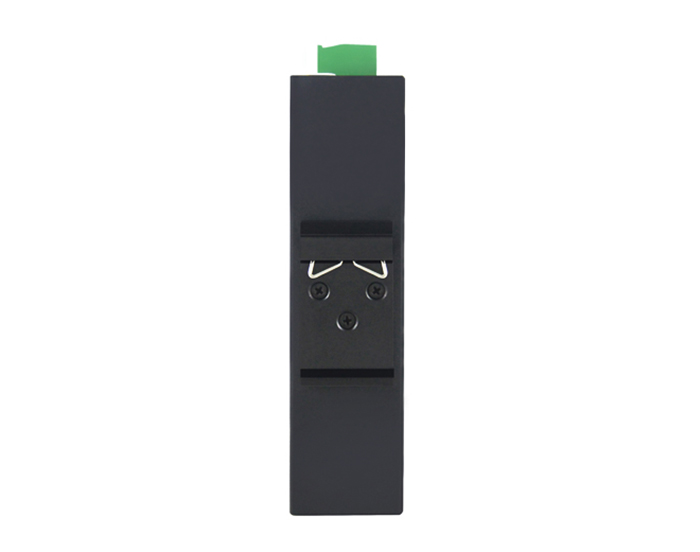

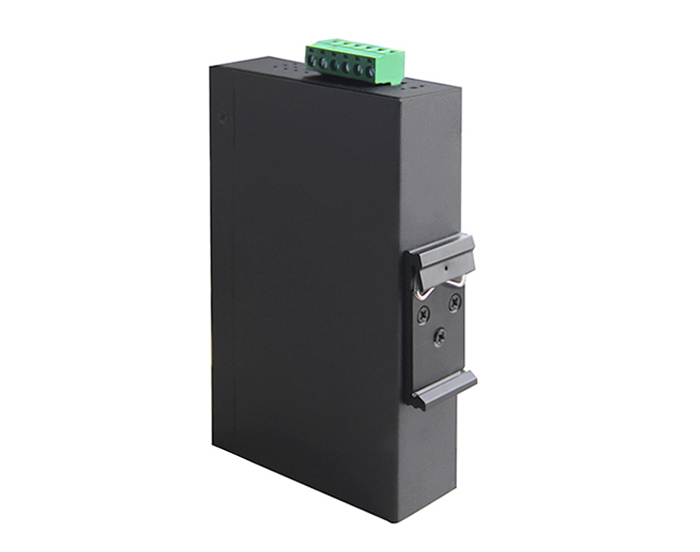

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-55Vdc make it possible for solar application and operates under -40℃ to +65℃,  For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Featuresbt standard 60W DIN Industrial 10G PoE injector
Part NumberPT-PSE105GW-E-10
Ports  conditionLAN Port*1, PoE Output Port*1, DC input Terminal Block *1
PoE output60W
Data rates10/100/1000 Mbps
Power input12-55Vdc,10A Max
Power output55Vdc1.1A 60W
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsSize: 144.5mmX 95mmX35.4mm
Weight: 400g(0.88lb)
Safety  ApprovalsCE, FCC
