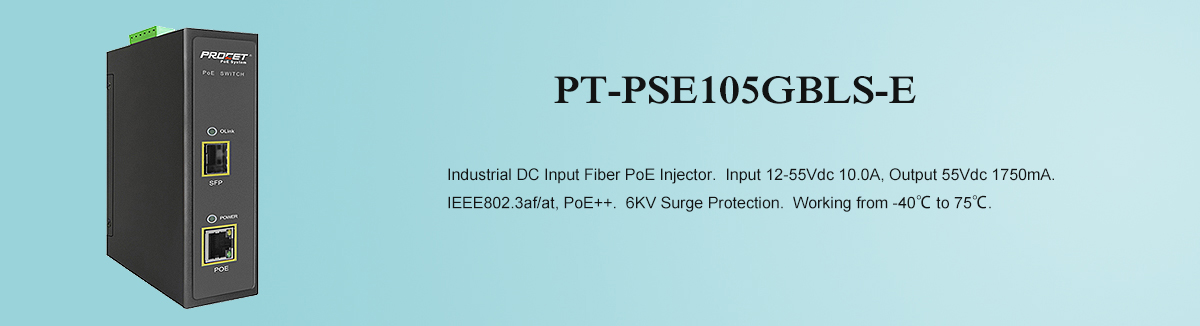

PT-PSE105GBLS-E is a single port SFP DIN Boost midspan Injector with 2 Pair PoE up to 95 watts of power 12-55Vdc,10.0A with 6Kv surge protection. Designed for the IEEE802.3bt powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3bt/at/af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 55Vdc/1.75A makes it possible for solar application and operates from -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | bt standard 95W SFP DIN BOOST Industrial PoE injector |
| Part Number | PT-PSE105GBLS-E |
| Ports condition | LAN Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| PoE output | 95W |
| Data rates | 1000BASE-X SFP |
| Power input | 12-55Vdc,10.0A Max |
| Power output | 55Vdc/1.75A |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 144.5mmX 95mmX35.4mm Weight: 400g（0.88lb） |
| Safety Approvals | CE, FCC |
