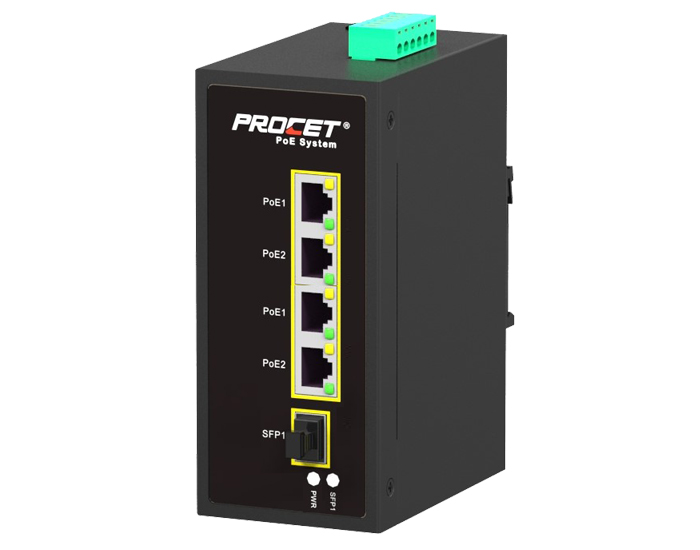

PT-PIS4PS-AC 4-port SFP DIN Injector

PT-PIS4PS-AC is a 4-port SFP DIN midspan Injector with 2 Pair PoE up to 60 watts of power 55Vdc/1.1A &44-57Vdc with 6Kv surge protection. Designed for the IEEE802.3af powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3af and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

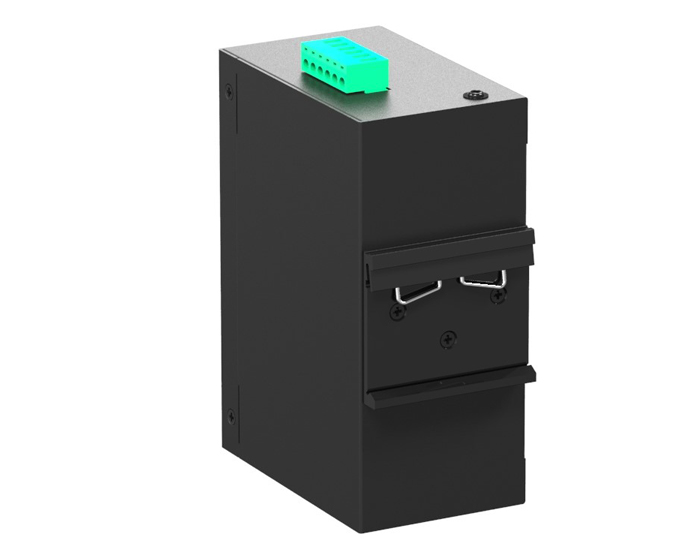

Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240Vac or 44-57Vdc make it possible for solar application and operates from -40℃ to +65℃,  For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key Featuresaf standard 15.4W SFP DIN Industrial PoE injector
Part NumberPT-PIS4PS-AC

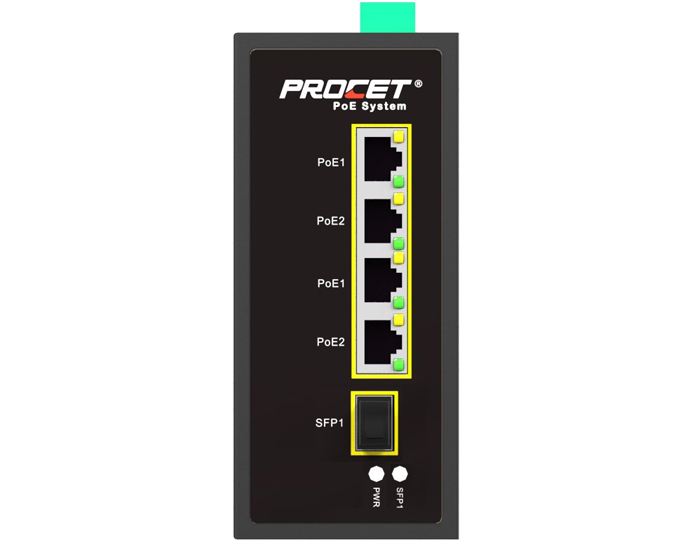

Ports  conditionSFP Port*1, PoE Port*4
PoE output15.4W
Data rates10/100/1000 Mbps
Power input100-240Vac or 44-57Vdc
Power output55Vdc/0.55A @AC input
44-57Vdc    @DC input
Regulatory ComplianceIEEE802.3af
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsSize: 144.5mmX 95mmX35.4mm
Weight: 400g(0.88lb)
Safety  ApprovalsFCC
