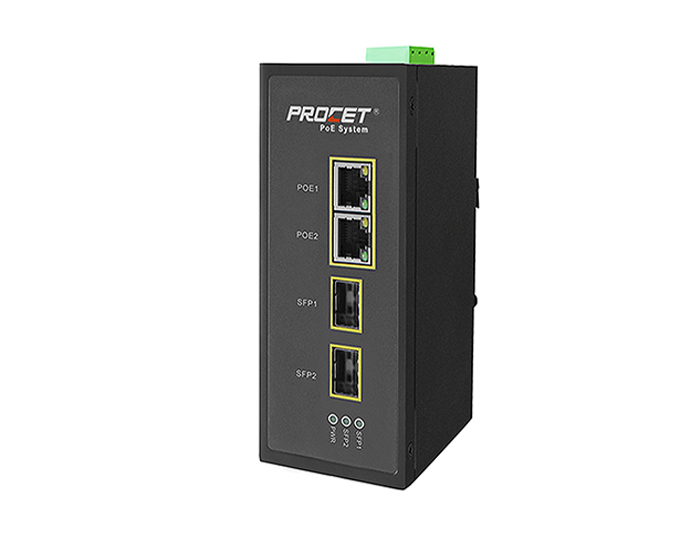

PT-PIS2PW2S-E 2-port SFP DIN PoE Injector

PT-PIS2PW2S-E is a 2-port SFP DIN Boost midspan Injector with 2 Pair PoE up to 60 watts of power 55Vdc/1.1A with 6Kv surge protection.Designed for the IEEE802.3bt(PoE++) powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3bt/at/af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

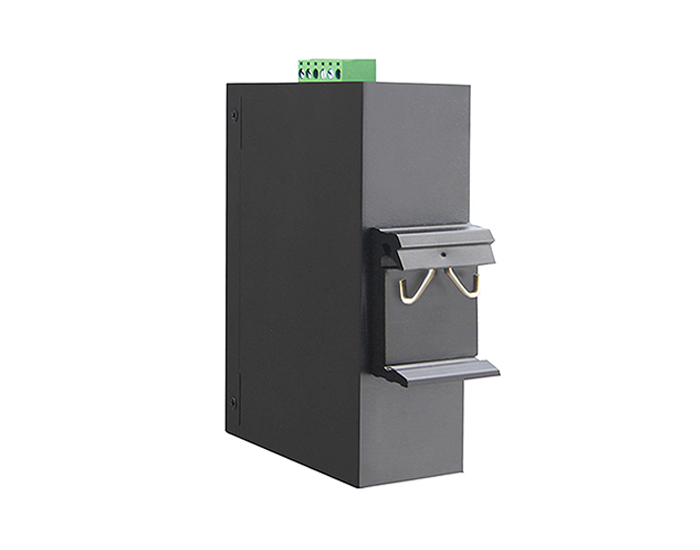

Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case.It works with a wide input voltage of 12-48Vdc makes it possible for solar application and operates under -40℃ to +65℃,  For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key Featuresbt standard 60W SFP DIN BOOST Industrial PoE injector
Part NumberPT-PIS2PW2S-E

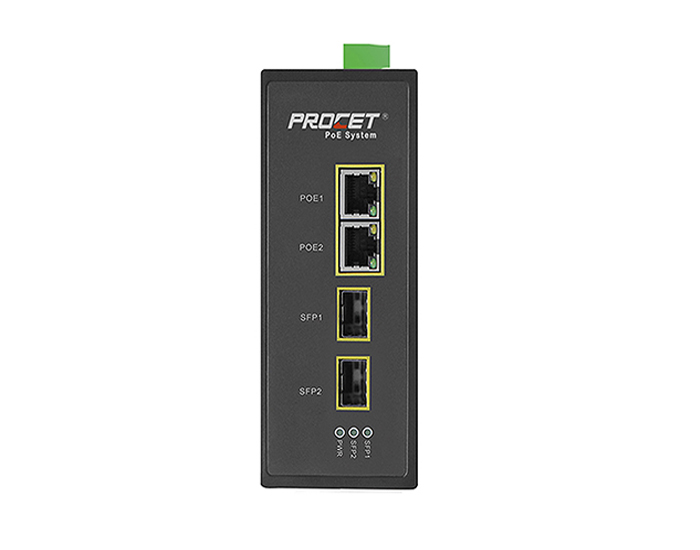

Ports  conditionSFP Port*2, PoE Output Port*2
PoE output60W
Data rates10/100/1000 Mbps
Power input12-48Vdc
Power output55Vdc  1.1A*2
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsSize: 144.5mmX 95mmX35.4mm
Weight: 400g(0.88lb)
Safety  ApprovalsFCC
