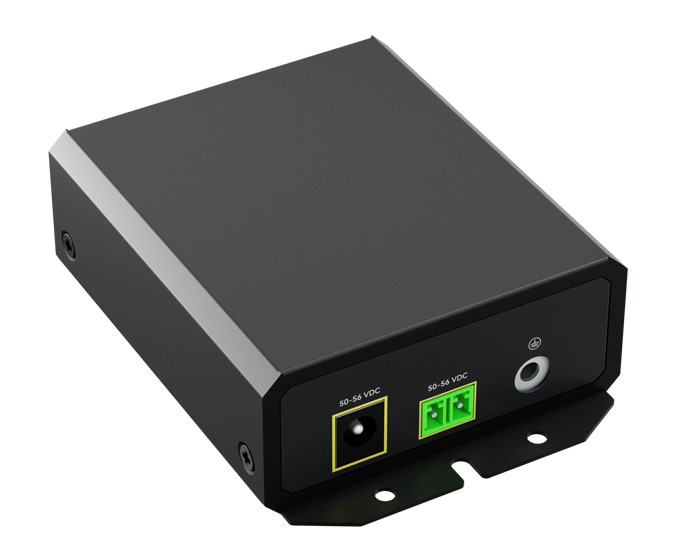

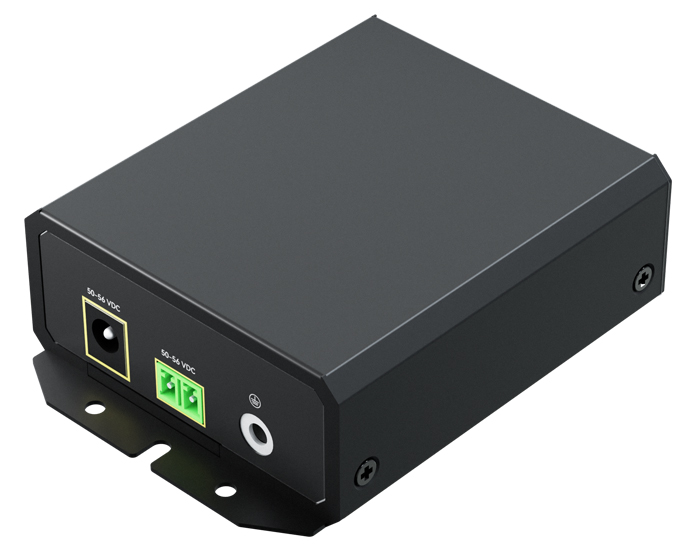

PT-PSE109GBRO-D industrial-rated DC to DC PoE injector.Enclosed in a high impact metal shell. Two types of DC input which can be powered through a 2PIN terminal block or a DC jack. The input voltage range is 50-56Vdc.
PoE output port with 6KV (10/700us) surge protection, which is compliant with 802.3af/at/bt standard that provides power up to 90W(Max) for remote PDs over 4 pairs at 10/100/1000Mbps of data speed.
The effective distance is 100 meters over Cat5e/Cat6 cables. Working for wireless access points, network cameras, routers, and other high power Ethernet terminals. For longer distance request, our product PT-PEX01G-OT (outdoor or indoor PoE extender) can help.
Specifications
| Parameter | Description |
| Key Features | Industrial-rated DC to DC PoE injector |
| 6KV (10/700us) surge protection | |
| Two types of DC input | |
| Working Temperature：-40℃ to 65℃ | |
| Part Number | PT-PSE109GBRO-D |
| Standard | IEEE802.3 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| Fully compliant with IEEE802.3af/at/bt/PoE++ | |
| RoHS，WEEE | |
| Interface | 50-56VDC*2 Grounding*1 PoE*1 LAN*1 |
| Output | Pin Assignment and Polarity: |
| Output:48-54Vdc 1.75A(Max 90W) | |
| Data Speed:10/100 / 1000Mbps | |
| Input | Input:50-56Vdc 2.0A Max |
| PoE Standard: IEEE802.3af/at/bt/PoE++ | |
| Power Pins:4/5(+),7/8(-) &3/6(+),1/2(-) | |
| Operating Environment | Working Temperature:-40℃to 65℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Operating Altitude:Up to 2000 meters | |
| Storage Humidity: 10% to 90%，non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| PoE Surge Protection | Protected line:1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6kV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| Network Protocol | IEEE802.3/IEEE802.3u/IEEE802.3ab |
| Media Support | 10/100/1000BASE-TXCat5 or above UTP（≤328 feets） |
| Regulatory Compliance | CE FCC |
| IP Rated | IP40 |
| Dimensions | Size: 98.5mm X 70.27mm X 29.7mm |
| Weight: 192.1g | |
| LED | PWR:Power indicator |
| Active:PoE power indicator | |
| EMC | FCC:FCC Part 15 Subpart B |
| CE:EN 55032:2015/A11:2020 | |
| CE:EN 55035:2017/A11:2020 | |
| Mechanical Characteristics | Case: Metal |
| Color: Black | |
| IP Rated：IP40 |
