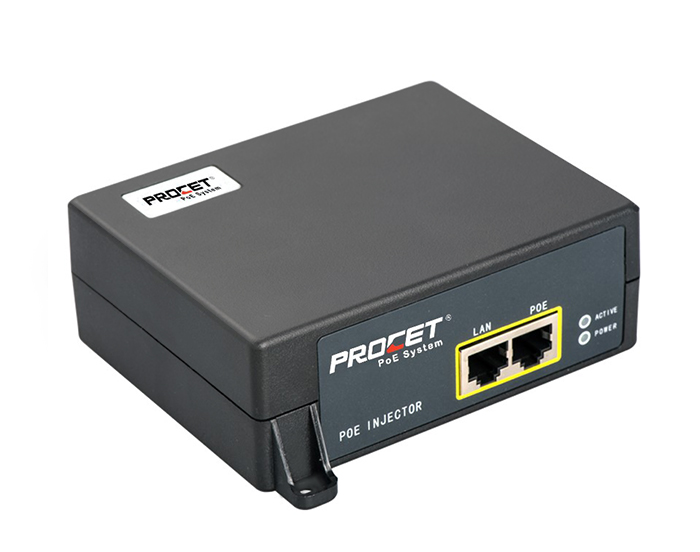

PT-PSE106SAR48-24 DC Powered Gigabit PoE Injector specially designed for complex backhaul and networking applications. Enclosed in an IP40 fire retardant plastic case.
Passive PoE directly power PDs without detecting, the single PoE output port delivers 24Vdc, 1.25A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 10/100/1000Mbps data rates. It works with DC input voltage of 44-57Vdc. It is capable of powering 30 watts non IEEE802.3af/at PoE Powered Devices (PD’s) and supports 802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, ONU IP Phones and IoT application.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Lighting Protection Buck PoE Gigabit data rates Reverse polarity protection for DC input Electrical Isolated design between Input and Output inside to avoid high current input damage |
| Part Number | PT-PSE106SAR48-24 |

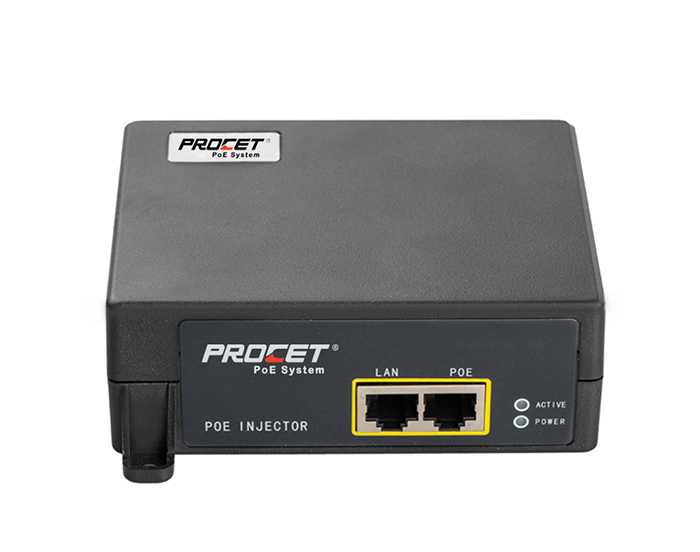

| Ports condition | LAN Port*1, DC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 24Vdc User Port Power: 30W Guaranteen |

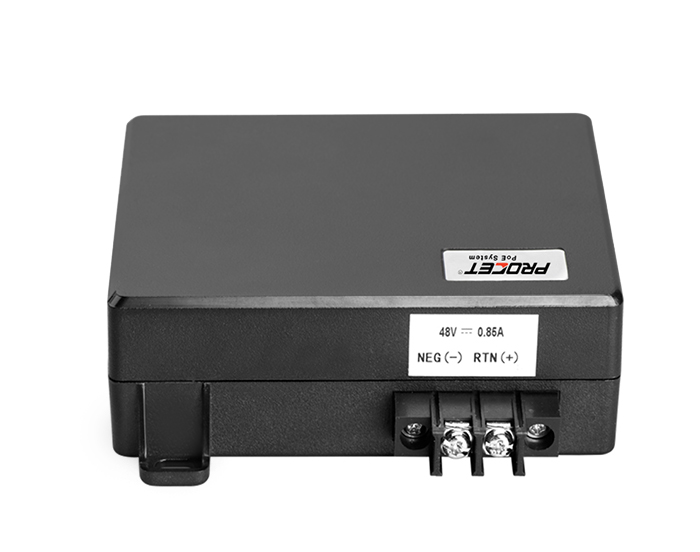

| Input | DC Input Voltage: 44 to 57 Vdc DC Input Current: 1.0A |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45 Size: 120mm X 125mm X 44mm Weight: 350g（0.77lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
Standing Stock
| Product Order Info.(Model) | PT-PSE106SAR48-24 |
| Stock Quantity | 200PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx, TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
