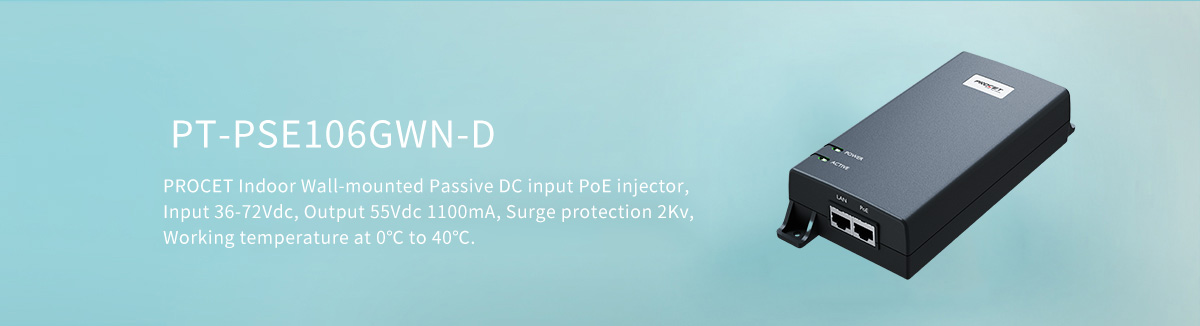

PT-PSE106GW-D is a DC input PoE injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 36-72 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
Specifications
| Parameter | Description |
| Key Features | 36-72Vdc Input Output 55Vdc, 60W Power Pin: 4/5(+),7/8(-) and 3/6(+),1/2(-) |
| Part Number | PT-PSE106GWN-D |

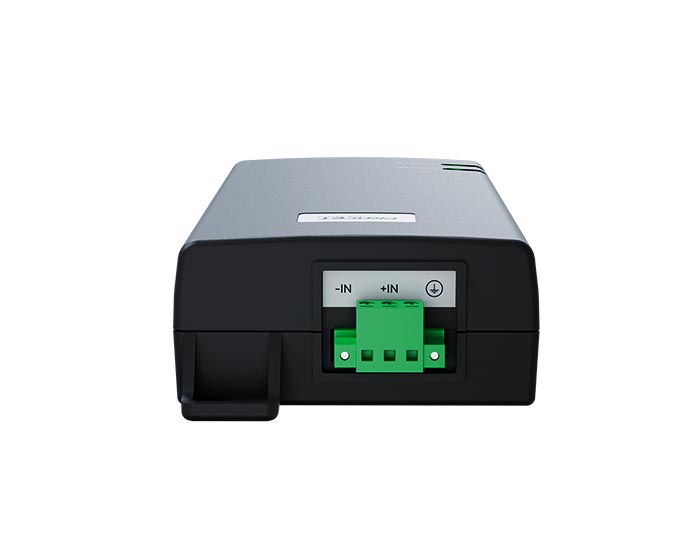

| Ports condition | LAN Port*1, DC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | Passive RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6 (+), 1/2 (–) Output Power Voltage: 55Vdc User Port Power: 60W Guaranteen |
| Input | DC Input Voltage: 36 to 72 Vdc DC Input Current: 2.5A |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

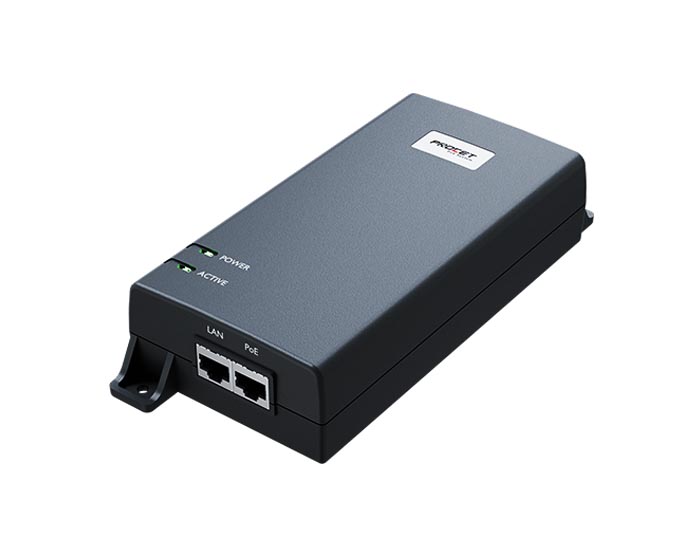

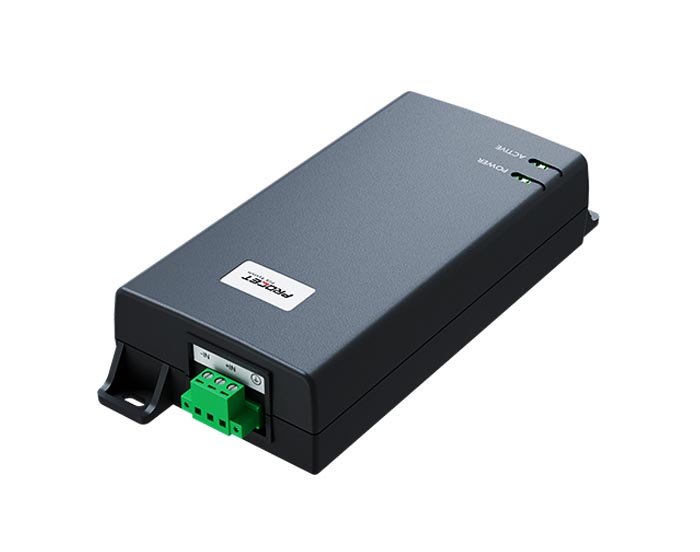

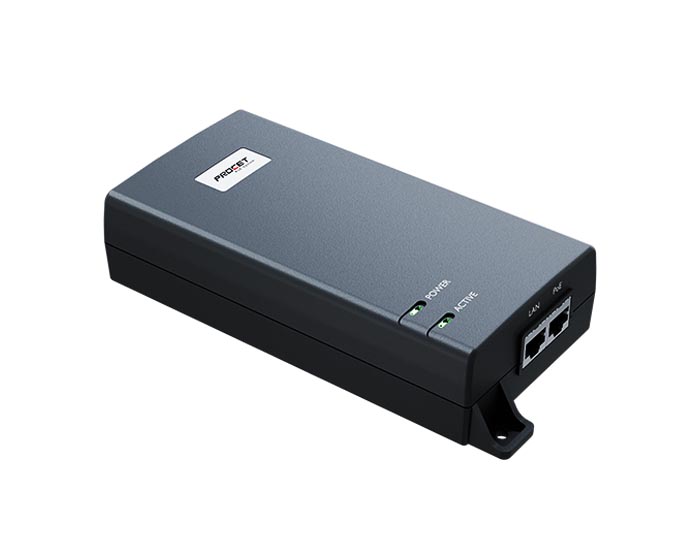

| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 193mmX 85mmX 41mm Weight: 380g（13.4oz） |
| LED Indicator | Power Indicator : Green PoE Load Indicator : Green @≤30W Blue @＞30W≤60W |
