PT-PTC-D-AT is a network power adapter designed based on IEEE802.3 at standard. The output is a standard Type-C interface, which can provide 5V/2.6A, 9V/1.75A, 12V/1.45A, 15V/1.37A, 20V/1.15A power supply and 100Mbps Internet data transfer.

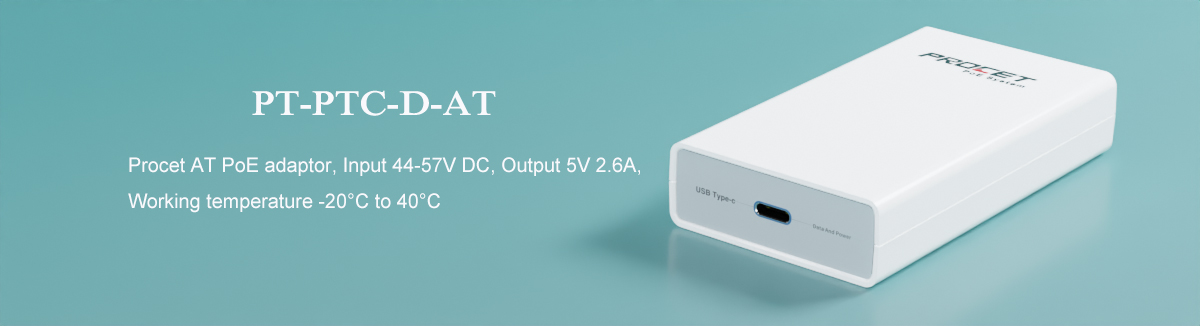

PT-PTC-D-AT is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use. The input and output of the device do not exceed the safe voltage of 57 V, and there is no need for electric shock protection. The product has passed the EU CE certification.

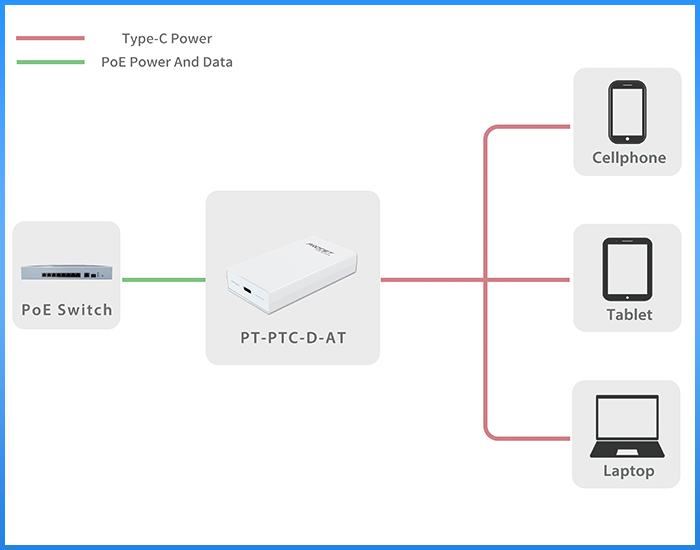

The device needs to be used in a wired network environment that supports IEEE802.3at, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.
|PoE Compliance||EEE802.3 at|
|Pin Assignment||4/5(+),7/8(-) or 3/6(+),1/2() or 3/6(-),1/2(+)|
|Output||Output||5V=2.6A 9V=1.75A 15V=1.37A 20V=1.15A 12V=1.45A|
|Operating Temperature||-20°C to 40°C|
|Operating Humidity||20%-80%, no condensation|
|Operating Altitude||Below 2000m|
|Storage Humidity||10%-90%, no condensation|
|Network Transmission||BASE-TX||Cat5 or above UTP(≤100m)|
|LED||Green||Light On: Normal connection |
Light Off: Not connected or
failed to connect
Blinking: Data transfer
|Yellow||Light On: Normal power supply|
Light Off: Abnormal power supply
|EMC||FCC||FCC CFR47 Part 15|
