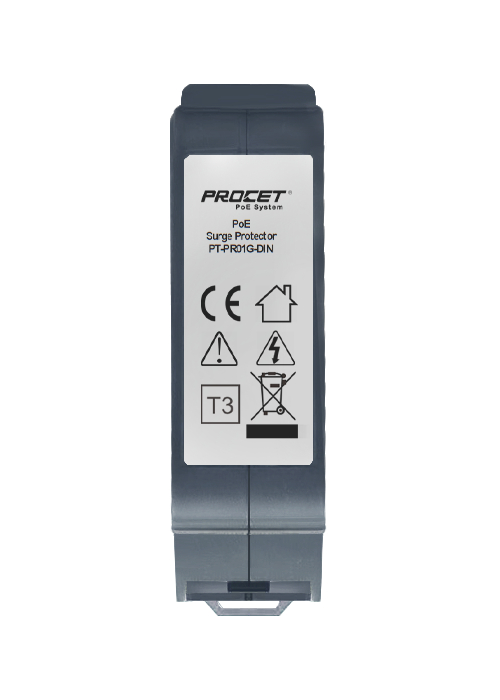

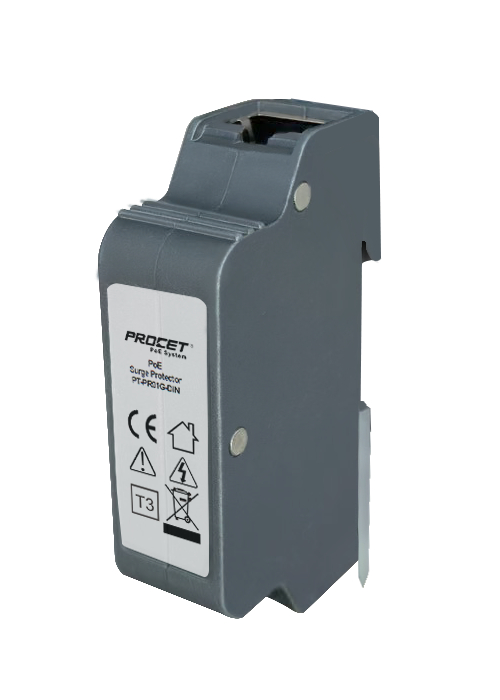

PT-PR01G-DIN Din-rail Single-port Surge Protector

PT-PR01G-DIN is a single-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for 110W(max) PoE wires and well protects your devices against surge damage.

PT-PR01G-DIN operates from -40℃ to +85℃ and works with voltage of 60Vdc (max). PoE In port should always be connected to device which you want it to be protected.

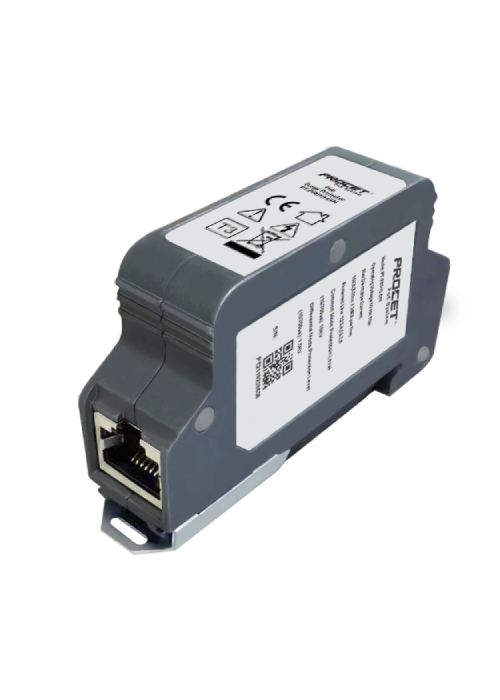

It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.

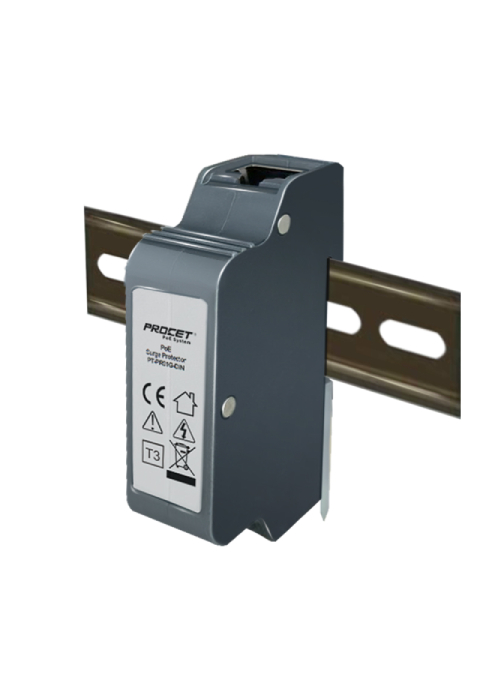

This model equipped standard DIN rail mounting bracket, which can easily jam into the guide rail. The DIN rail as a ground wire to transmit the current to the earth.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesDIN rail mounted
DIN rail is the ground wire
Part NumberPT-PR01G-DIN
Ports conditionPoE Port*2
Regulatory ComplianceIEEE802.3bt or PoE ++
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates10/100/1000 Mbps
OutputMaximum Operating DC Current:1A for 2 pairs
                                                       2A for 4 pairs
                                                       Maximum 110W
InputOperating Voltage:60Vdc (Max.)
Working EnvironmentOperating Temperature: -40 to 85
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters

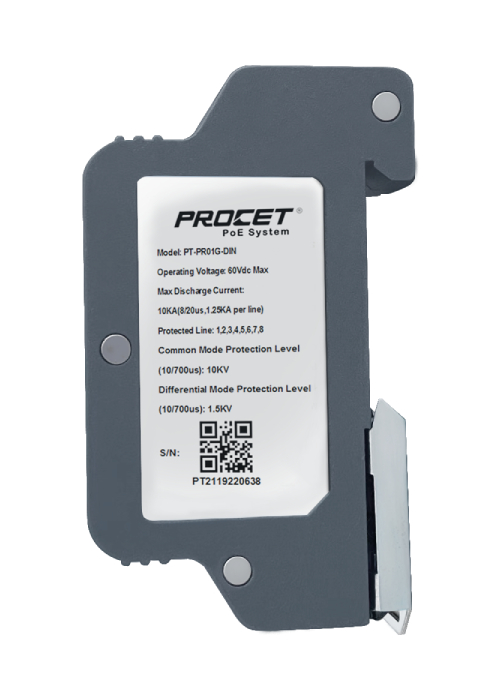

PoE Surge ProtectionMax Discharge Current: 10KA(8/20us,1.25KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Warranty5 year
Safety ApprovalsCE
