PT-PR01G-OT

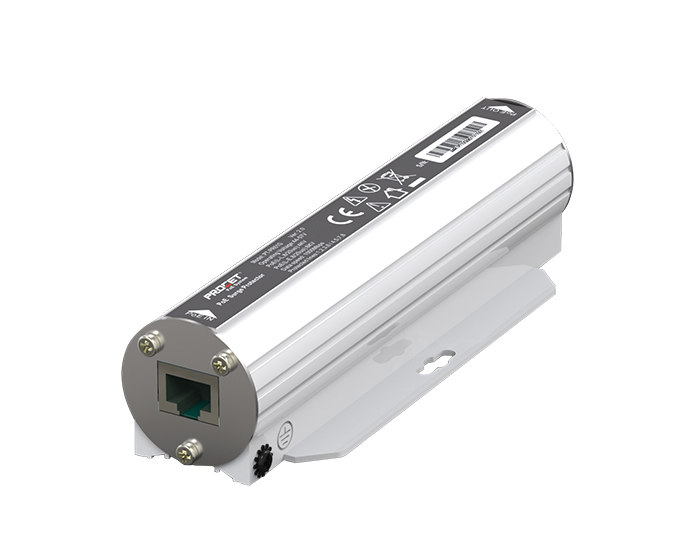

PT-PR01G-OT is a 1 port outdoor PoE surge protector with 4 Pair PoE up to 60 watts of power.


Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

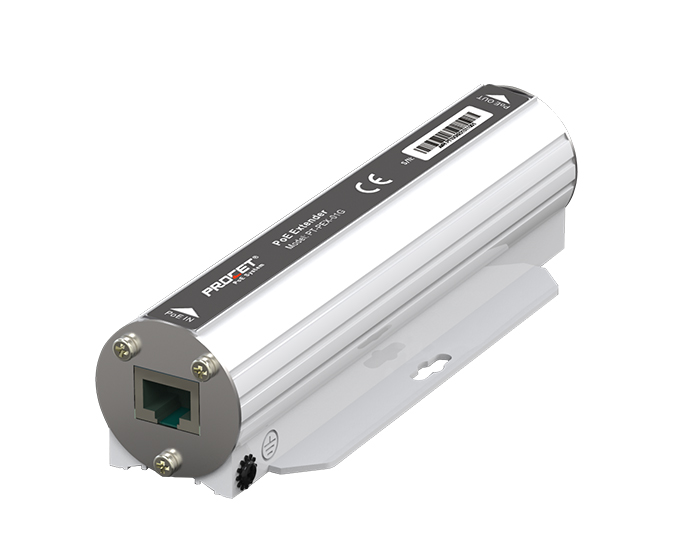

Enclosed in an IP67 fire retardant Alumininum alloy case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 44-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT (Outdoor or Indoor PoE Extender).

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesWall-mounted
Part NumberPT-PR01G-OT
Ports conditionPoE Port*2
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:

4/5(+), 7/8(-) and 3/6(+),1/2(-)

Maximum Operating DC Current :0.68A for 2 pairs,
                                                      1.36A for 4 pairs

User Port Power: 60W (Max.)
InputOperating Voltage: 44-57Vdc (Max 60Vdc)
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 10KV
Differential mode surge protection (10/700us): 6KV
Mechanical CharacteristicsCase: Alumininum alloy
Color: White
Mounting: Wall-mounted
IP Rated: IP67
Connectors: Shielded RJ-45*2
Size: 209mmX 53mmX 37.5mm
Weight: 380g13.4oz
LED IndicatorPoE Load Indicator: Green
Warranty2 year
Safety ApprovalsCE/FCC


Install Video

None

Standing Stock

Product Order Info.(Model)PT-PEX-01G-OT
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm
