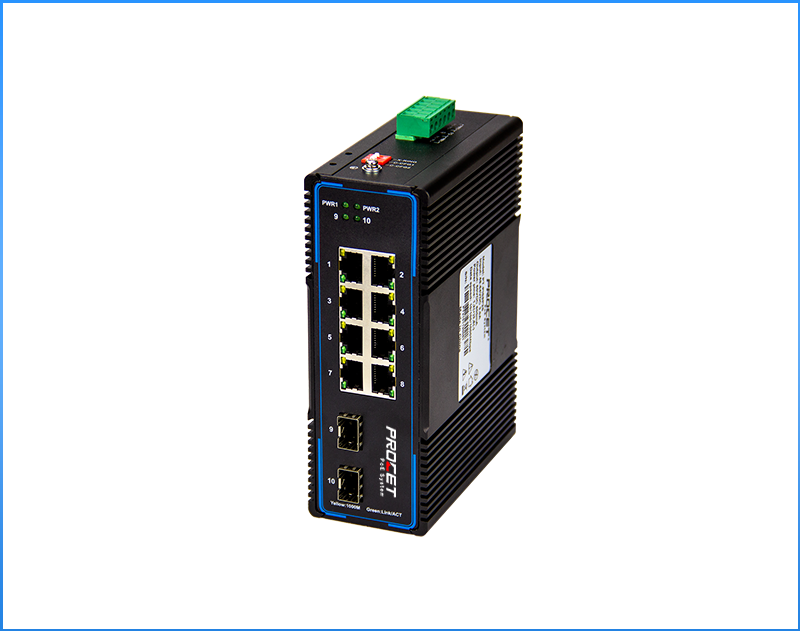

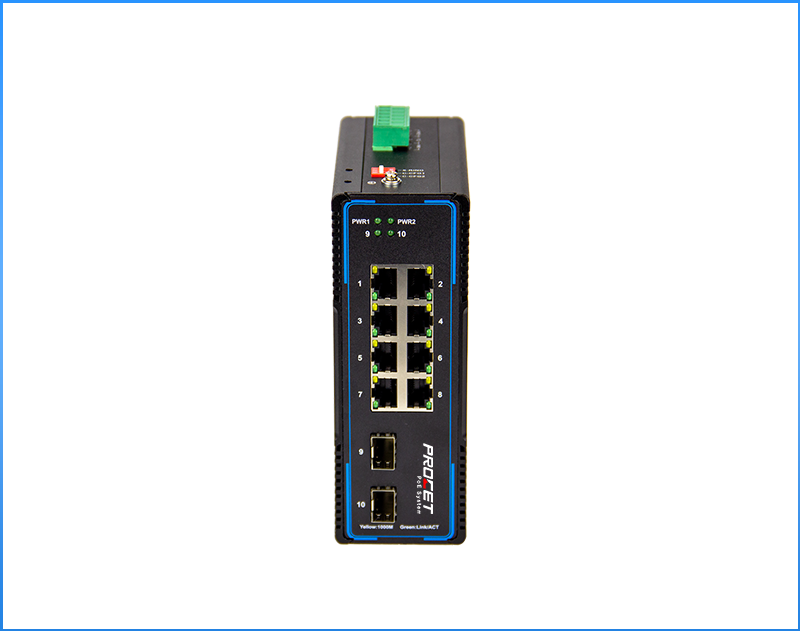

PT-PIS8P2S 8 Ports PoE Switch

PT-PIS8P2S is an industrial-grade indoor fiber optic PoE switch, which fully complies with the IEEE802.3at standard protocol, supply 30W each port, the 8 ports transmission power is connected is 240W in total, gigabit data rates.


Dual voltage input design, with redundant function, anti-reverse connection, overvoltage, and overcurrent protection. It is widely used in communication, security, Internet of Things applications, information kiosks, etc., and can supply and transmit power to 8 terminal devices at the same time.

IP40 metal shell, working temperature range is -40 ℃ to 85 ℃, and the storage environment has no condensation within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial Fiber PoE
Solar Application
Part NumberPT-PIS8P2S
Ports conditionSFP Port*2, PoE Port*8
Regulatory ComplianceIEEE802.3af/at
CE Compliance
FCC Compliance
Pass-Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000BASE-X SFP Interfaces
Output3/6 (+), 1/2 (–)
Output voltage per port: 50-57V
Output current per port: 0.6A
Max Power: 30w per port, 240w in total
InputDC Input Voltage: 50-57VDC
DC Input Current: 5A
Working EnvironmentOperating Temperature: -40℃ to 85℃
Operating Humidity: 5% to 95%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 5% to 95%, non-condensation
Operating Altitude: up to 3000meters
Mechanical CharacteristicsCase: Metal
Color: Black

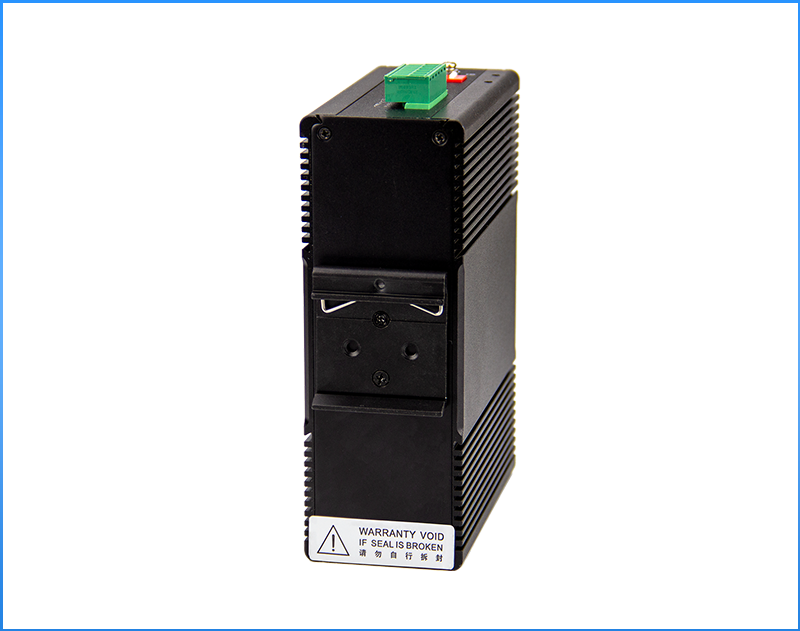

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*5

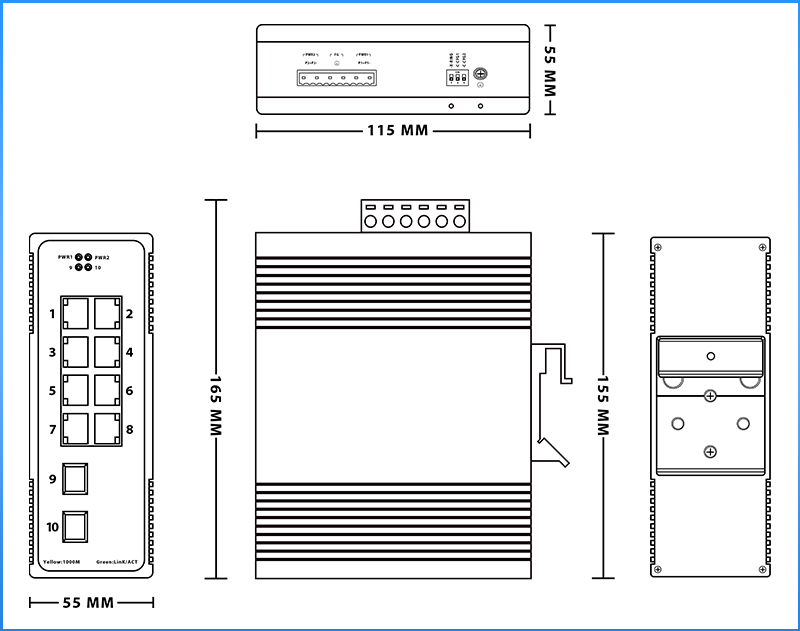

Size: 155mmX 115mmX 55mm
Weight: 1320g(2.91lb)
LED Indicator- Power LED: Green
- PoE Load Indicator: Green&Yellow 1000Mbps
- PoE Load Indicator: Green <1000Mbps
- SFP LED: Green
- LAN Indicator: Green&Yellow 1000Mbps
- LAN Indicator: Green <1000Mbps
Warranty2 year
