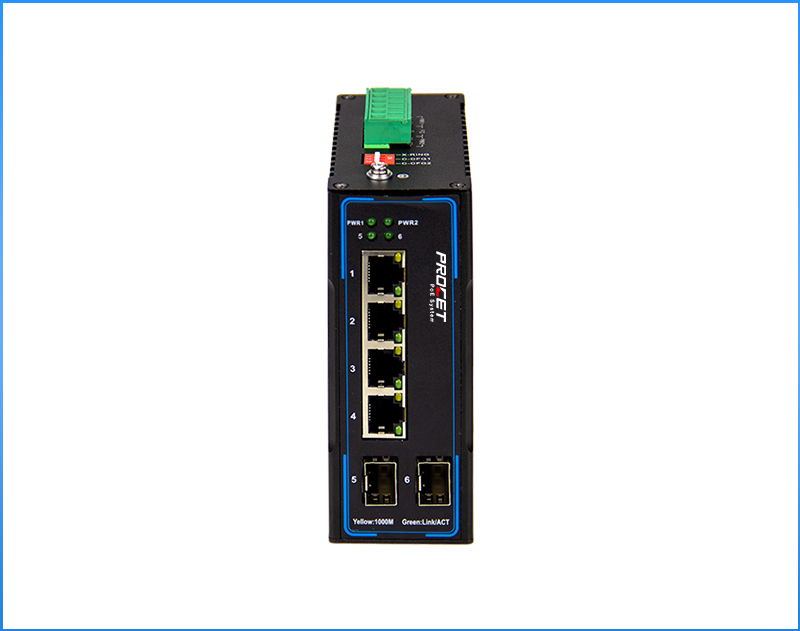

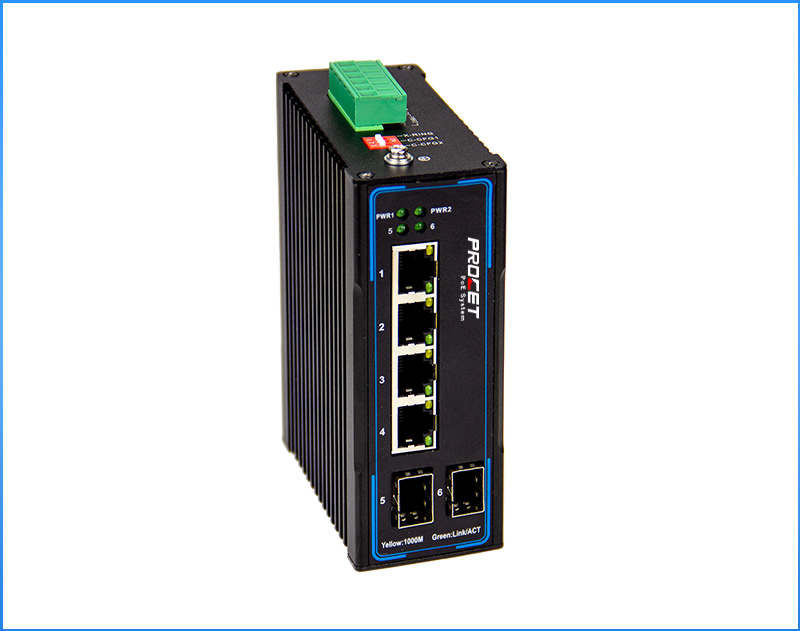

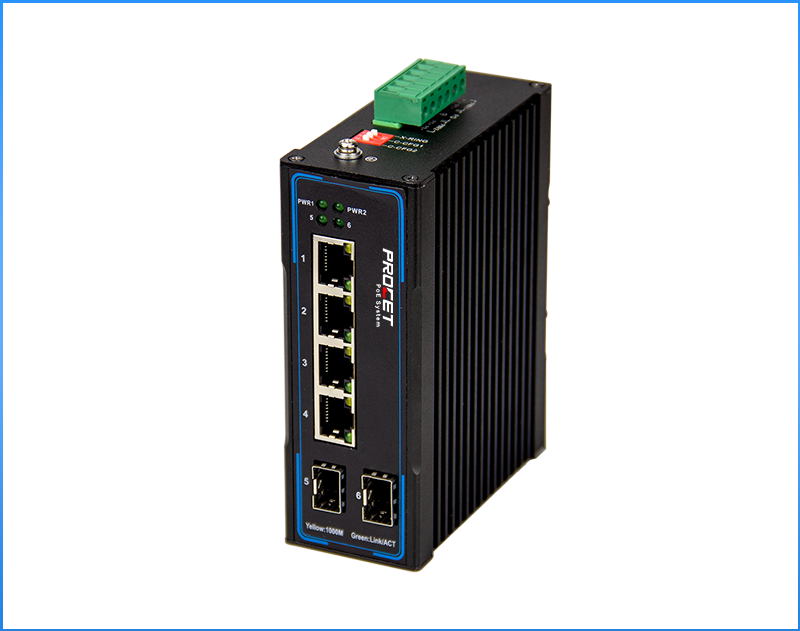

PT-PIS4P2S Industrial-grade Fiber PoE switch

PT-PIS4P2S is an industrial-grade indoor fiber optic PoE switch, IEEE802.3at protocol, the power transmission of each port is 30W, 4 ports total transmission power is 120W, gigabit data speed, with 2 fiber ports.

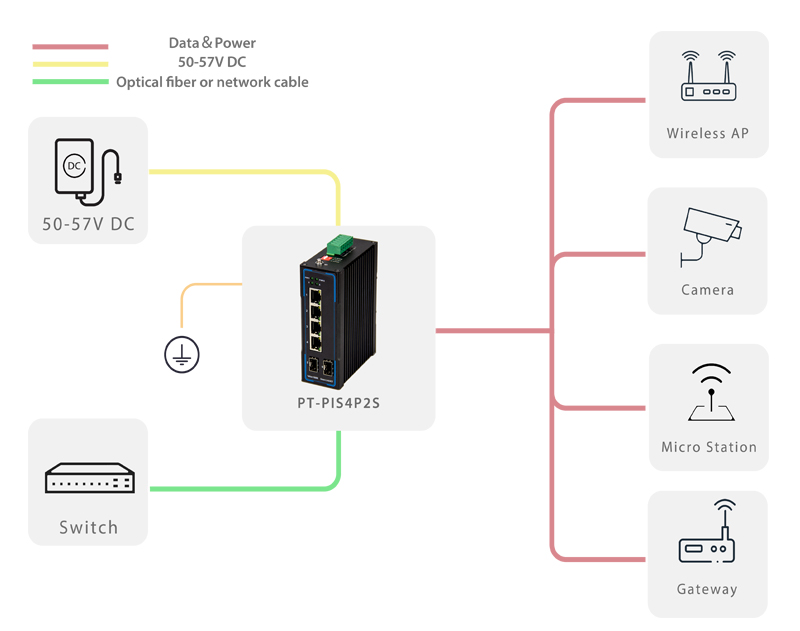

Dual voltage input design, with redundant function, 50-57V DC power supply, anti-reverse connection, overvoltage, and overcurrent protection. Widely used in communication, security, information kiosks, etc., and can power 4 PDs at the same time.

IP40 metal shell. Works from -40°C to 85°C, and the storage environment is non-condensing within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial Fiber PoE
Solar Application
Part NumberPT-PIS4P2S
Ports conditionSFP Port*2
Regulatory ComplianceIEEE802.3af/at
CE Compliance
FCC Compliance
Pass-Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000BASE-LX SFP Interfaces
Output3/6 (+), 1/2 (–)
Output voltage per port: 50-57V
Output current per port: 0.6A
Max Power: 30w per port, 120w in total
InputDC Input Voltage: 50-57VDC
DC Input Current: 0.3A
Working EnvironmentOperating Temperature: -40℃ to 85℃
Operating Humidity: 5% to 95%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 5% to 95%, non-condensation
Operating Altitude: up to 3000meters
Mechanical CharacteristicsCase: Metal
Color: Black

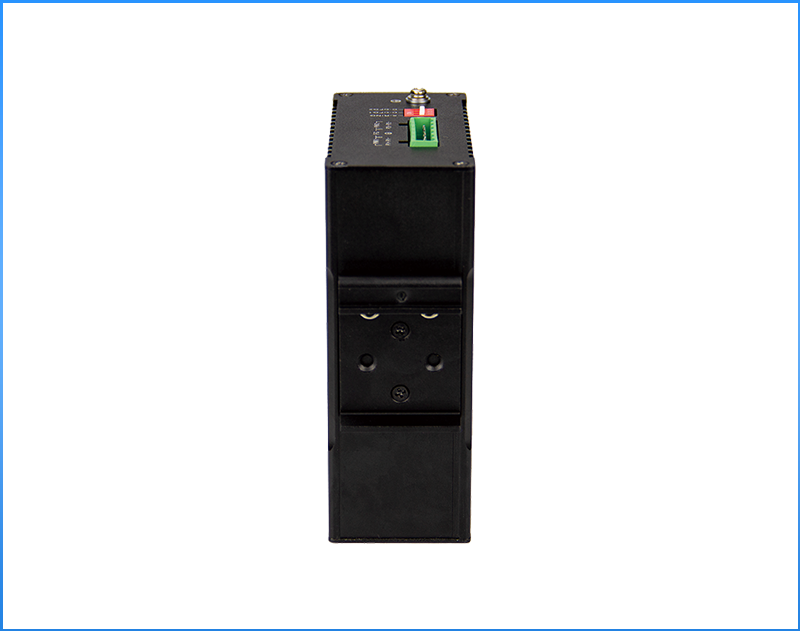

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*5
Size: 125mmX 95mmX 45mm
Weight: 550g(1.21lb)
LED Indicator- Power LED: Green
- PoE Load Indicator: Green&Yellow 1000Mbps
- PoE Load Indicator: Green <1000Mbps
- SFP LED: Green
- LAN Indicator: Green&Yellow 1000Mbps
- LAN Indicator: Green <1000Mbps
Warranty2 year
