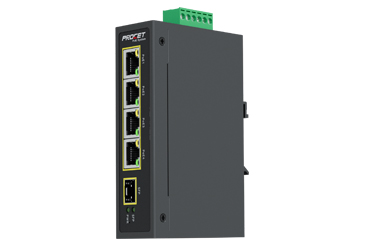

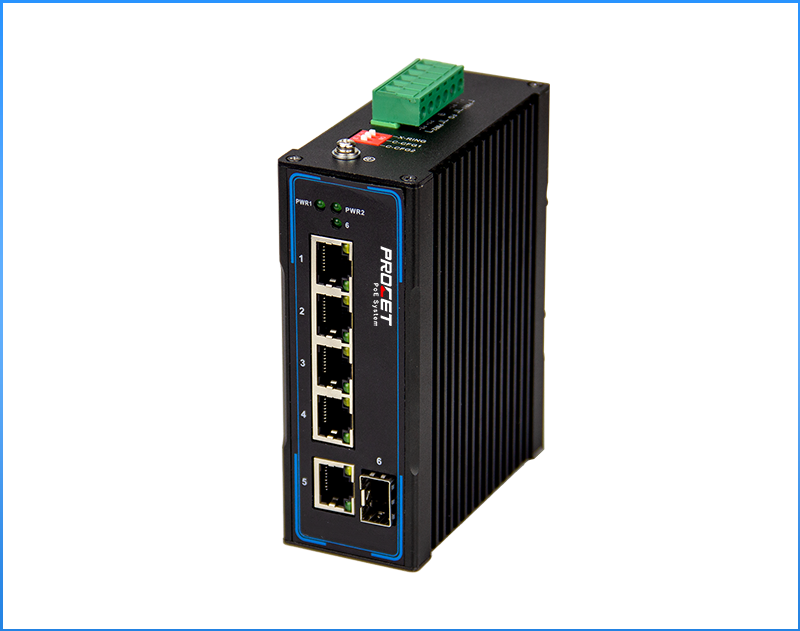

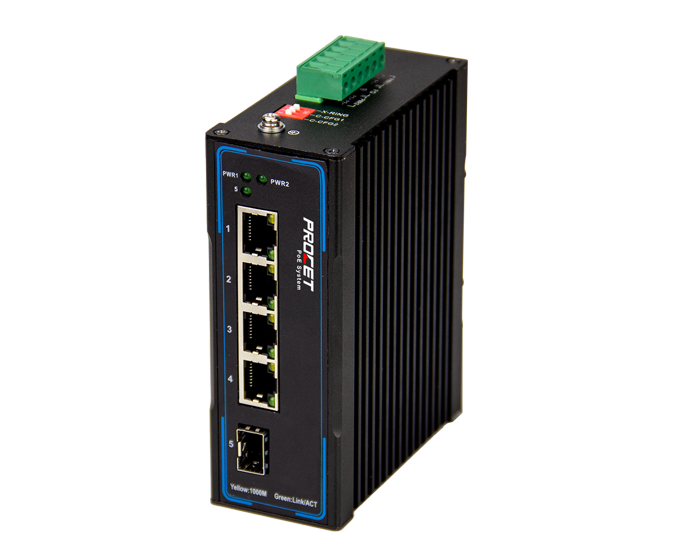

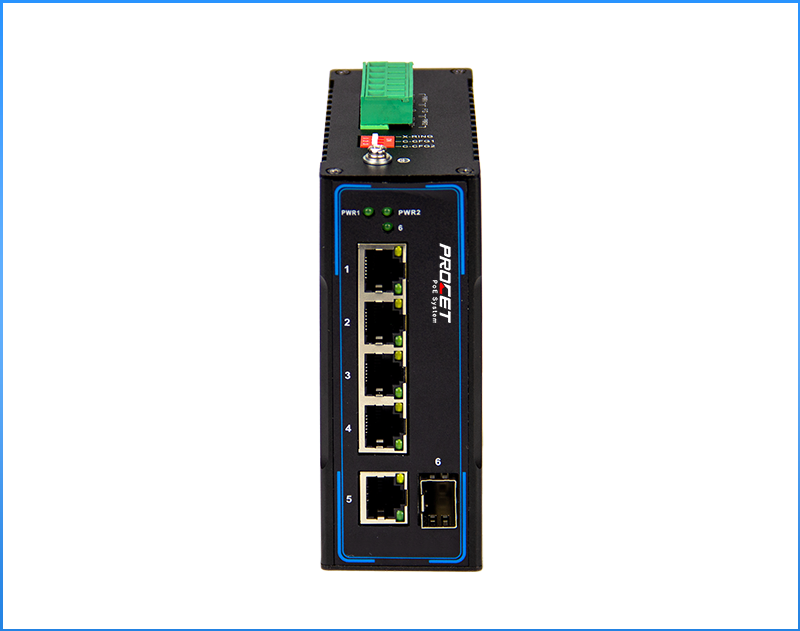

PT-PIS4P1S1T DC Multi-port PoE Switch

PT-PIS4P1S1T is an industrial-grade PoE switch that fully complies with the IEEE802.3at devices. The power transmission of each port is 30W, and the total transmission power with 4 ports is 120W. The gigabit transmission rate with fiber ports.

It is specially designed for 30W PoE power supply devices (PD) powered by IEEE802.3at, widely used in communication, security, Internet of Things applications, information kiosks, etc. It can supply power and transmit data to 4 terminal devices at the same time.

IP40 metal shell, the working environment temperature range is -40°C to 85°C, and the storage environment is non-condensing within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial Fiber PoE
Solar Application
Part NumberPT-PIS4P1S1T
Ports conditionSFP Port*1, PoE Output Port*4, LAN Port*1
Regulatory ComplianceIEEE802.3af/at
CE Compliance
FCC Compliance
Pass-Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000Base-X SFP Interfaces
Output3/6 (+), 1/2 (–)
Output voltage per port:50-57V
Output current per port: 0.6A
Max Power: 30w per port
InputDC Input Voltage:  50-57VDC
DC Input Current: 0.3A
Working EnvironmentOperating Temperature: -40℃ to 85℃
Operating Humidity: 5% to 95%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 5% to 95%, non-condensation
Operating Altitude: up to 3000meters
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*5
Size: 125mmX 95mmX 45mm
Weight: 550g(1.21lb)
LED Indicator- Power LED: Green
- PoE Load Indicator: Green&Yellow 1000Mbps
- PoE Load Indicator: Green <1000Mbps
- SFP LED: Green
- LAN Indicator: Green&Yellow 1000Mbps
- LAN Indicator: Green <1000Mbps
Warranty2 year
