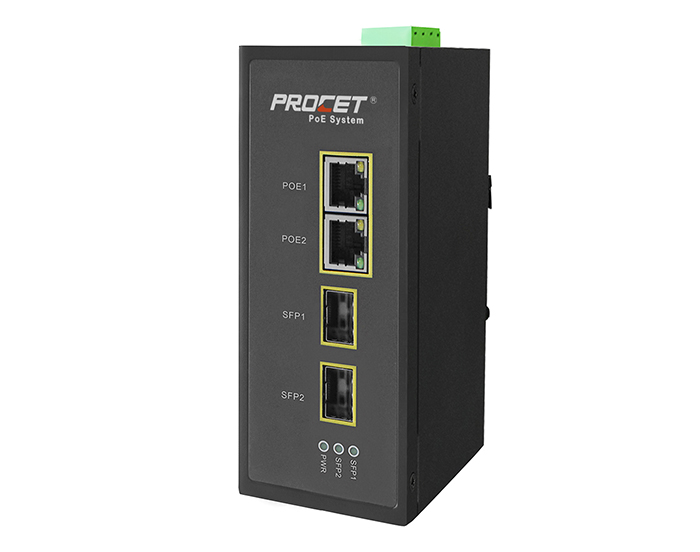

PT-PIS2P2S-DC Gigabit PoE Switch

PT-PIS2P2S-DC is a multi-port industrial switch with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.


Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.


Enclosed in an IP40 fire retardant metal case, designed for outdoor installation with a Din-rail mount tracking. It operates with a wide input voltage of 44-57 VDC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesIndustrial Boost PoE
Solar Application
Lighting Protection
DIN Rail
Part NumberPT-PIS2P2S-DC

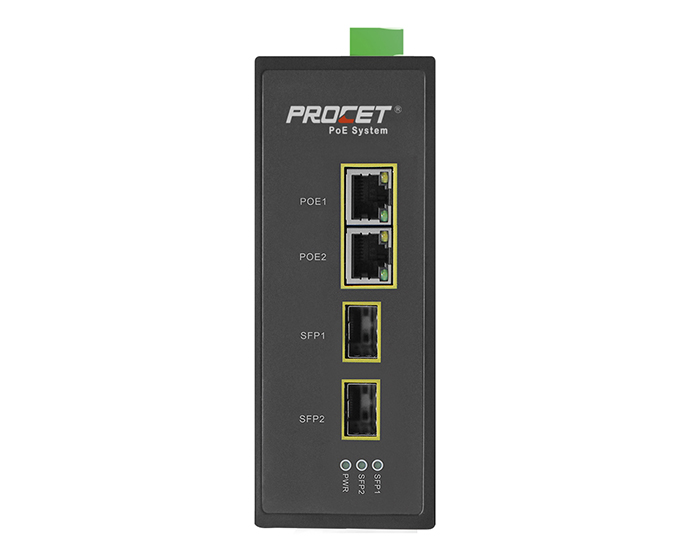

Ports conditionSFP Port*2, PoE   Output Port*2
Regulatory ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
3/6 (+), 1/2 (–)
Output Power Voltage: 55Vdc
User Port Power: 30W Guaranteen
InputDC Input Voltage: 44 to 57 Vdc
Working EnvironmentOperating Temperature: -40 to 75
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth   1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Metal
Color: Black

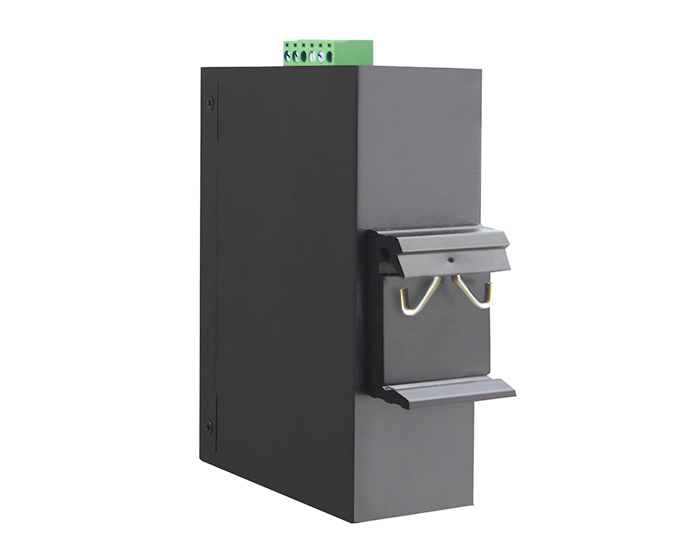

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 135mmX 95mmX 35.4mm
Weight: 485g0.88lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Yellow
SFP Indicator: Green
Lan Indicator: Yellow
Warranty2 year
Safety ApprovalsCE
