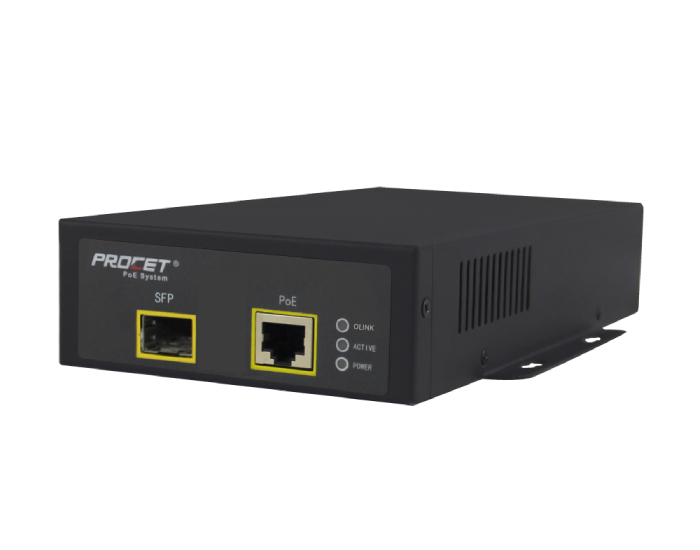

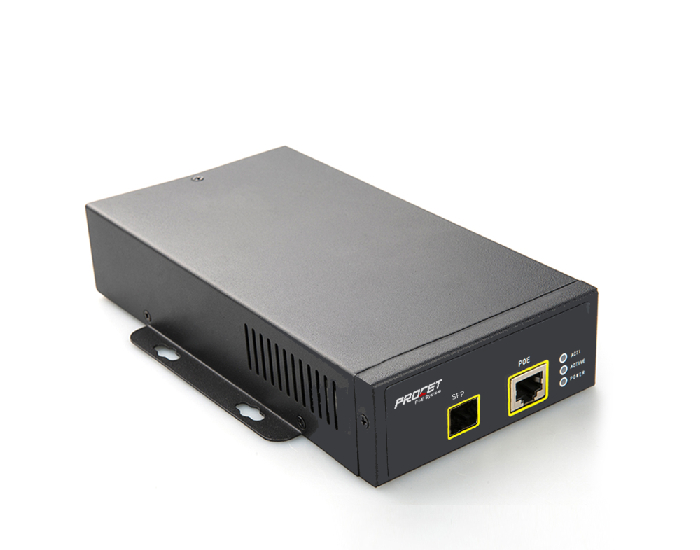

PT-PSE109GBRO-10S Industrial 10G Fiber PoE

PT-PSE109GBRO-10S is an industrial media converter with PoE function, offers a unique solution to powering long-range installations, where the data input comes over 10G fiber such as special scenarios, like highway side, exurb applications.

802.3af/at/PoE++ standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps and 2.5G/5G/10G data rates. Low power devices receive only the power they need.

Enclosed in an IP20 high-impact metal case. Equipped Chipset inside, it works as a PoE switch. It works with a wide input voltage of 100-240Vac under the wide operating temperature of -40℃ to 65℃. There are wall mounting tabs on either side of it. Works with Wi-fi 6, wireless APs, Microwave radio, IoT application, door locks, IP Cameras, information kiosks, and other PoE devices.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesGigabit data rates
1000Base-FX to 1000Base-TX
SFP slot for Multimode or Single-mode SFP transceiver
Diagnostic LEDs
AC port 6kv Surge protection
IP20 high-impact metal enclosure
Extend temperature from -40
 to 65
Industrial Fiber PoE can be outdoor use by covered with waterproof case
Part NumberPT-PSE109GBRO-10S

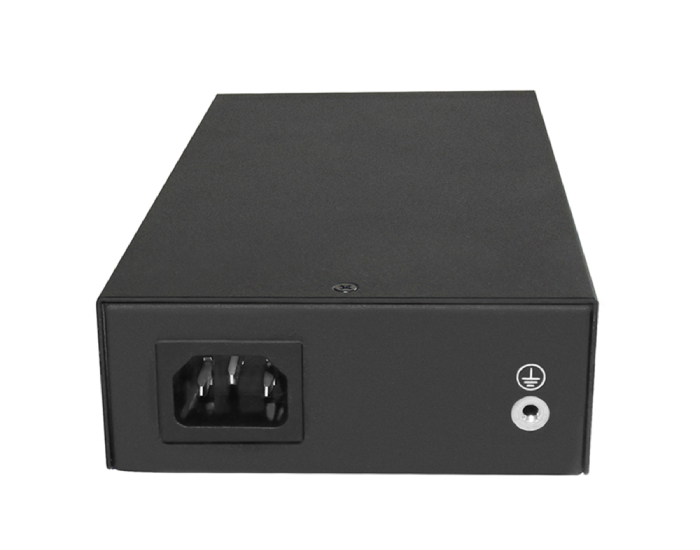

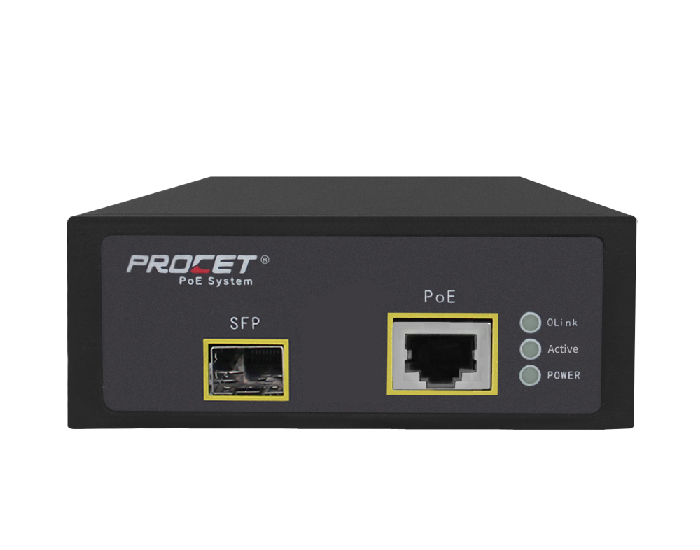

Ports conditionSFP Port*1, PoE Output Port*1, AC Input Port *1
Regulatory ComplianceIEEE802.3af/at, PoE++
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates10/100/1000 Mbps & 2.5/5/10GbE
OutputPower Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
55Vdc 1750mA
Input100-240Vac 2.0A 50/60Hz
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40
 to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000 meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical   CharacteristicsCase: Metal
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Size: 213.9mm X 134.0mm X 41.0mm
Weight: 1104g
