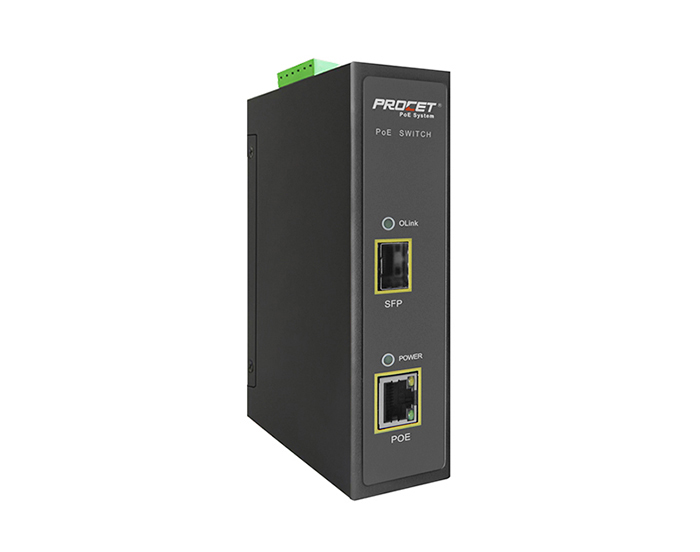

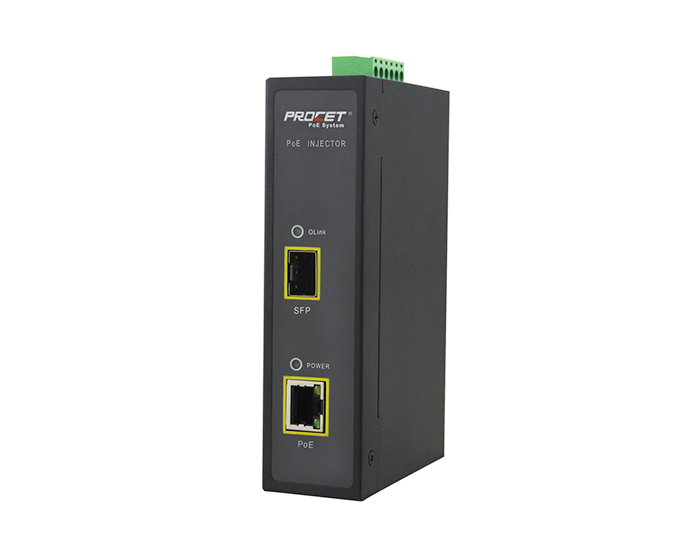

PT-PSE105GBS-D-10 DIN Rail 10G PoE Injector

PT-PSE105GBS-D-10 is a single-port, industrial-scale, PoE media converter with PoE function. It provides 95W(max) power for remote PDs over full 4 pairs output with 6KV (10/700us) surge protection.


1 SFP+ uplink at 10G Fiber high speed enables distance extension over fiber optic cabling to PoE Powered Devices (PDs), 10GBASE-X SFP+ to 10G Base-T. It works for 95W PoE PDs, such as wireless access points, network cameras, Microwave radios, and other high-power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3 af/at/bt compliant terminals.

PT-PSE105GBS-D-10 is designed for indoor use but can work outdoor by being covered with a waterproof case. It works with an input voltage of 50-57Vdc and operates from -40℃ to 65℃. It has a detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial Fiber PoE can be outdoor use by covered with waterproof case
Surge protection at PoE port
10GBASE-X SFP+ to 10G Base-T
High speed 10G data rates
IP40 high-impact metal enclosure
DIN-Rail mount
Extend temperature from -40 to 65
Diagnostic LEDs
Part NumberPT-PSE105GBS-D-10
Ports conditionSFP Port*1, PoE Output Port*1, DC input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps & 2.5/5/10GbE
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) & 3/6(+),1/2(-)
Output Power Voltage: 48-55Vdc 1750mA
InputDC Input Voltage: 50-57Vdc 2.0A
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
 to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical   CharacteristicsCase: Metal
Color: Black

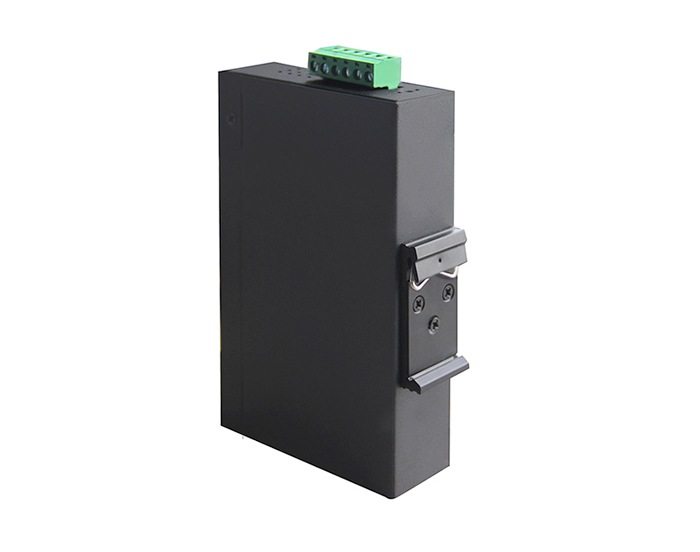

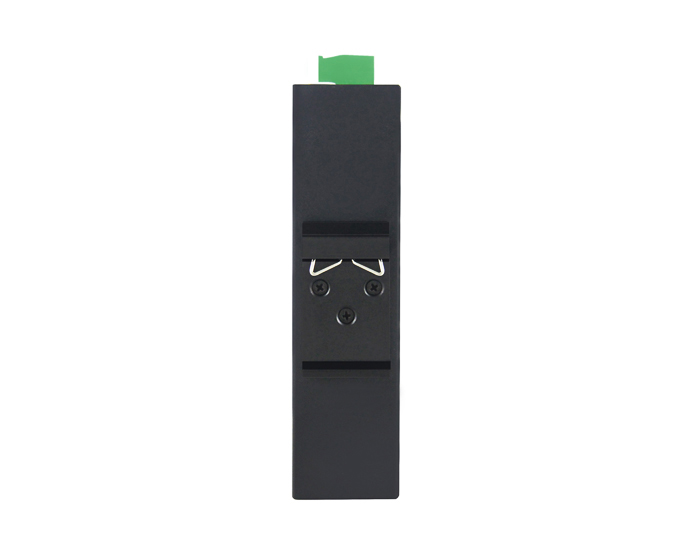

Mounting: DIN-rail
IP Rated: IP40
Size: 144.5mm X 95mm X 35.4mm
Weight: 485g
