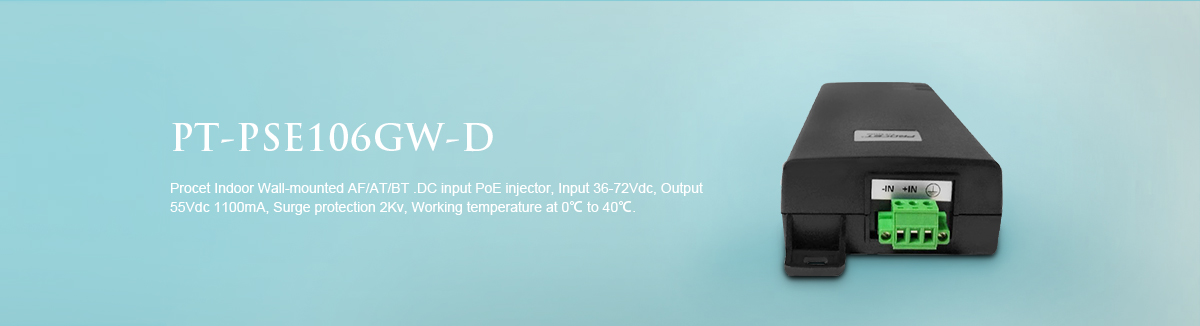

PT-PSE106GW-D 60W 55Vdc PoE Injector

PT-PSE106GW-D is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.


Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.


Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 36-72 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features

36-72Vdc Input

Output 55Vdc, 60W

Power Pin: 4/5(+),7/8(-) and 3/6(+),1/2(-)

Part NumberPT-PSE106GW-D
Ports conditionLAN Port*1, DC Input Port*1, PoE Output Port*1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) and 3/6 (+), 1/2 (–)
Output Power Voltage: 55Vdc
User Port Power: 60W Guaranteen
InputDC Input Voltage: 36 to 72 Vdc
DC Input Current: 2.5A
Working EnvironmentOperating Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20
to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 193mmX 85mmX 41mm
Weight: 380g13.4oz
LED IndicatorPower Indicator : Green
PoE Load Indicator :  Green   @≤30W
                                  Blue  @>30W≤60W
Warranty2 year
Safety ApprovalsCE/FCC


None

Standing Stock

Product Order Info.(Model)PT-PSE106GW-D
Stock Quantity200PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm
