PT-PSE105GWS-E-10 10G SFP PoE Injector

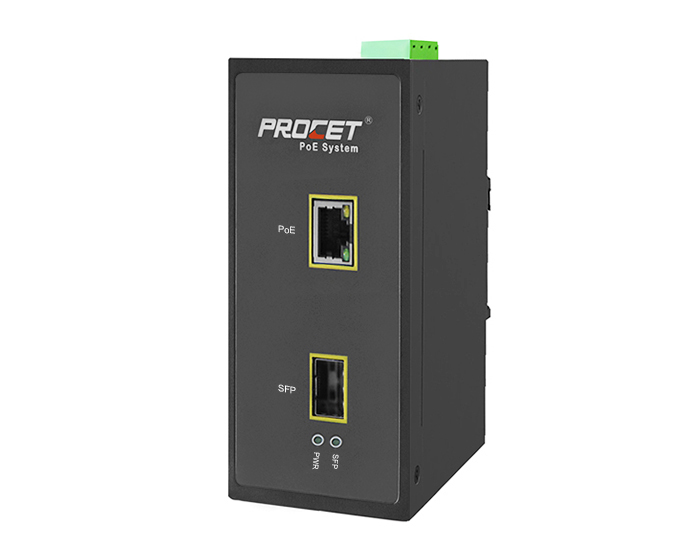

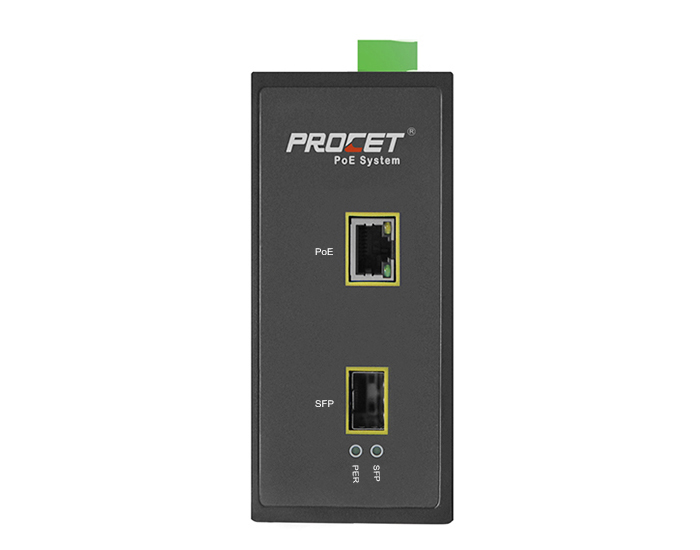

PT-PSE105GWS-E-10 is a single-port, industrial-scale, boost PoE media converter with PoE function. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs output with 6KV (10/700us) surge protection. 1 SFP+ uplink at 10G Fiber high speed enables distance extension over fiber optic cabling to PoE Powered Devices (PDs), 10GBASE-X SFP+ to 10G Base-T.

 It works for 60W PoE PDs, such as wireless access points, network cameras, Microwave radios, and other high-power Ethernet terminals. It is fully compliant with IEEE802.3bt and also backward compatible to 802.3af/at standard.

Designed for indoor use but can work outdoor by being covered with a waterproof case. It works with an input voltage of 12-55Vdc and operates from -40℃ to 65℃. It has a detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped standard DIN rail mounting bracket, which can easily jam into the guide rail.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial SFP+ Fiber PoE can be outdoor use by covered with waterproof case
Surge protection at PoE port
10GBASE-X SFP+ to 10G Base-T
SFP+ slot for Multi mode or Single mode SFP+ transceiver
10G/5G/2.5G/1G BASE-T auto-negotiation RJ45 Interfaces
12-55VDC input make it possible for solar application

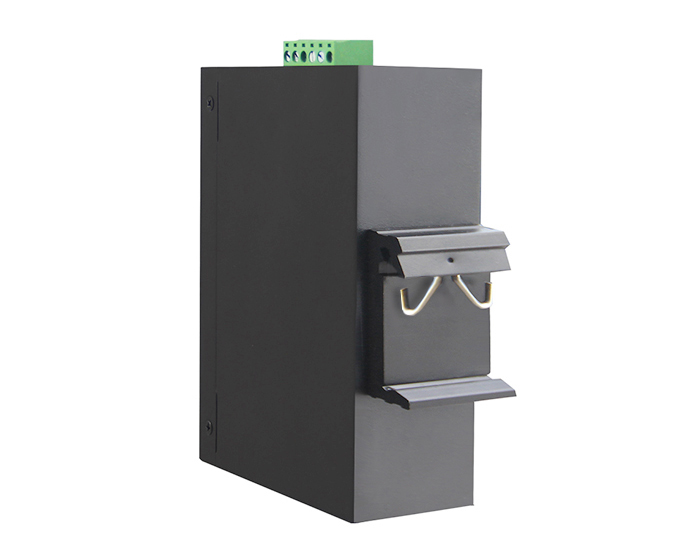

DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40 to 65
Diagnostic LEDs
Part NumberPT-PSE105GWS-E-10
Ports conditionSFP Port*1, PoE Output Port*1, DC input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10GBASE-X SFP+ slot
10G/5G/2.5G/1G BASE-T auto-negotiation RJ45 Interfaces
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) & 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 60W Guaranteen
InputDC Input Voltage: 12 to 55 Vdc
DC Input Current: 10.0A
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
 to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*1, SFP slot*1
Size: 144.5mmX 104.2mmX 60mm
Weight: 819g
LED IndicatorPower Indicator : Green
PoE Load Indicator : Green
SFP fiber indicator: Green
PoE data indicator: Yellow
Warranty5 year
