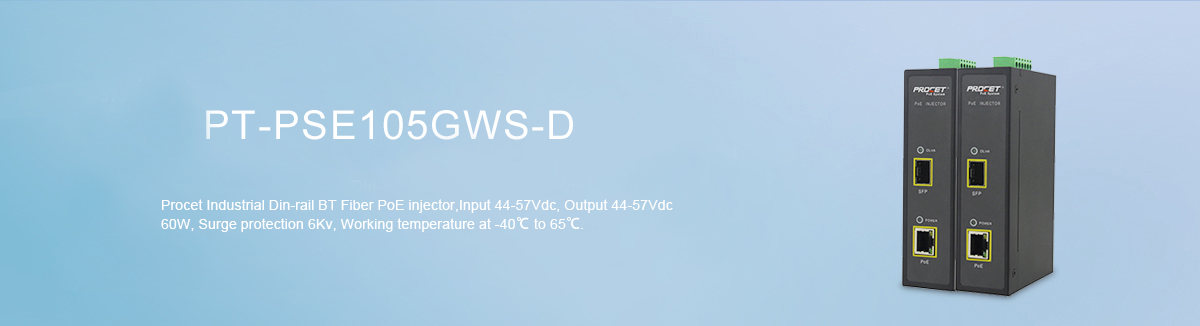

PT-PSE105GWS-D is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 44-57 VDC at 60W.
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as wireless access points, network cameras, VoIp phones, Base station, Microwave radio and other high power Ethernet terminals. It supports 1000Mbps of data rates. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals. It works as a switch, data is interoperable between PoE port and SFP port. . Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 fire retardant metal case, designed for indoor use but can work outdoor by covered with waterproof case with a Din-rail mount tracking. It operates with a wide input voltage of 44-57 VDC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Surge protection at PoE port 1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates DIN Rail mount IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PSE105GWS-D |
| Ports condition | SFP Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 44-57Vdc User Port Power: 60W Guaranteen |
| Input | DC Input Voltage: 44 to 57 Vdc Power: 60W |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP slot *1 Size: 144.5mmX 96mmX 35.4mm Weight: 485g（lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Yellow SFP fiber indicator:Green Lan data indicator: Yellow |
| Warranty | 2 year |
Standing Stock
| Product Order Info.(Model) | PT-PSE105GWS-D |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 12Kgs Volume: 0.03 m³ Packing: Export Carton Pallet size: 110 x 110cm |
