60W PoE Injector

Home >> Products >> PoE Injector >> 60W PoE Injector

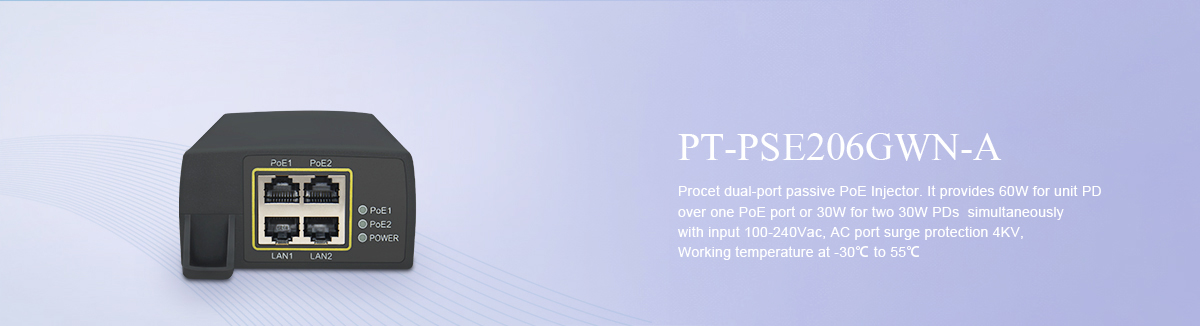

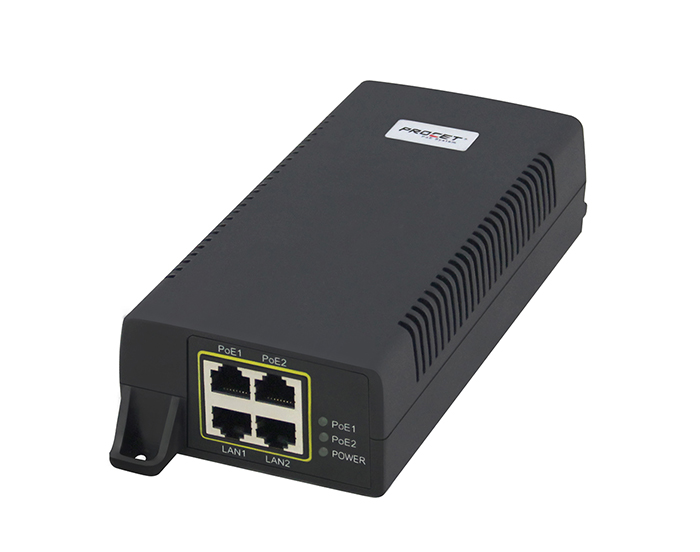

PT-PSE206GWN-A 60W PoE++ injector

PT-PSE206GWN-A is 60W PoE++ injector with 1 PoE port up to 60 watts of power at 55 Vdc at 1.1 amp or 2 PoE ports at 30 watts of power at 55Vdc 0.55amp


It is the AC input PoE injector with 100-240Vac input, with AC port has excellent lightning protection, lightning capacity up to 4KV


Designed for the PoE+ powered 30W/60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. It can also feed PDs which are compliant with IEEE802.3af/at/bt standard.


1.Question: There is no data exchange between LAN 2 ports if I use only LAN1 as data port. There is no switching chip. The same for both PoE ports.

Answer: Yes


2.Question: So LAN1 goes to PoE1 output the same for LAN2 goes to PoE2 output.

Answer: Yes


3.Question: So I can also use completely different IP addresses for LAN1 and LAN2

Answer: Yes


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Featuresdual-port optional PoE
30W/60W Application
AC Port 4KV Lighting Protection
Part NumberPT-PSE206GWN-A

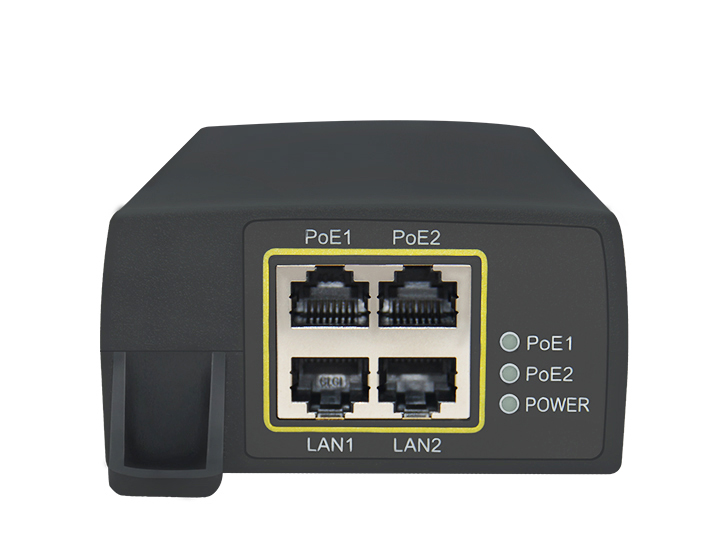

Ports conditionLAN Port*2, AC Input Port*1, PoE Output Port*2
Regulatory ComplianceRoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 30W@2-PoE or 60W@1-PoE

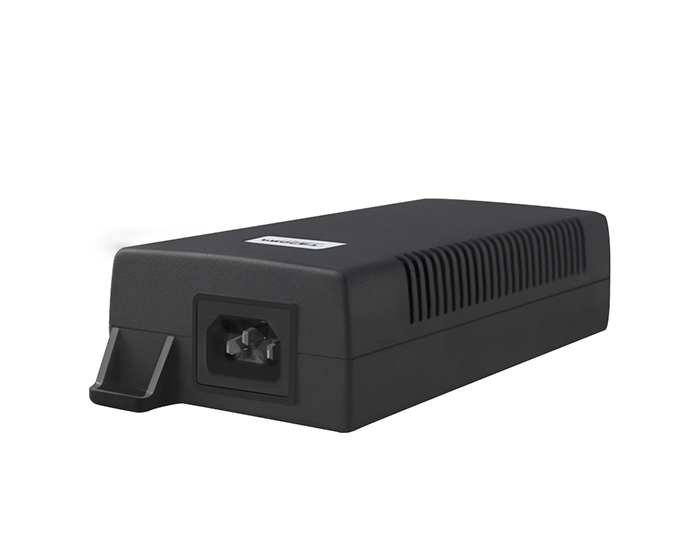

InputAC Input Voltage: 100-240V
DC Input Current: 1.5A
Frequency: 50/60Hz
Working EnvironmentOperating Temperature: -30 to 55
Operating Humidity: 5% to 95%, non-condensation
Storage Temperature: -30
to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 4KV
Mechanical CharacteristicsCase: Plastic
Color: Black
Mounting: Rack-mounted / Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*4, AC*1
Size: 208mmX 85mmX 46mm
Weight: 400g0.88lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Green
Safety ApprovalsCE
