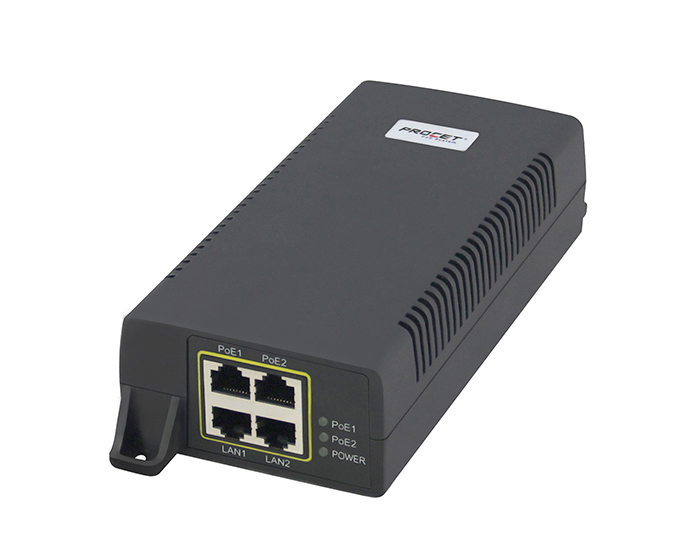

PT-PSE206GW-A 2 Port 60W Gigabit PoE Injector

PT-PSE206GW-A 2 Port 60W Gigabit PoE Injector specially designed for complex backhaul and networking applications. Enclosed in an IP40 fire retardant plastic case.


After negotiating IEEE802.3at standard PoE, the two PoE output port simultaneously delivers 55Vdc, 0.55A up to 30W power for remote PDs over 4 Pair at 10/100/1000Mbps data rates.  It can be also used as single port PoE which delivers 55Vdc, 1.1A up to 60W for remote PD.  It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -30℃ to +55℃. It fully complies with IEEE802.3at/bt and remains compatible with any IEEE802.3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.


For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.


1.Question: There is no data exchange between LAN 2 ports if I use only LAN1 as data port. There is no switching chip. The same for both PoE ports.

Answer: Yes


2.Question: So LAN1 goes to PoE1 output the same for LAN2 goes to PoE2 output.

Answer: Yes


3.Question: So I can also use completely different IP addresses for LAN1 and LAN2

Answer: Yes


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesWide temperature at -30 to 55   make it possible for industrial use
Lighting Protection
Gigabit data rates
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
Part NumberPT-PSE206GW-A

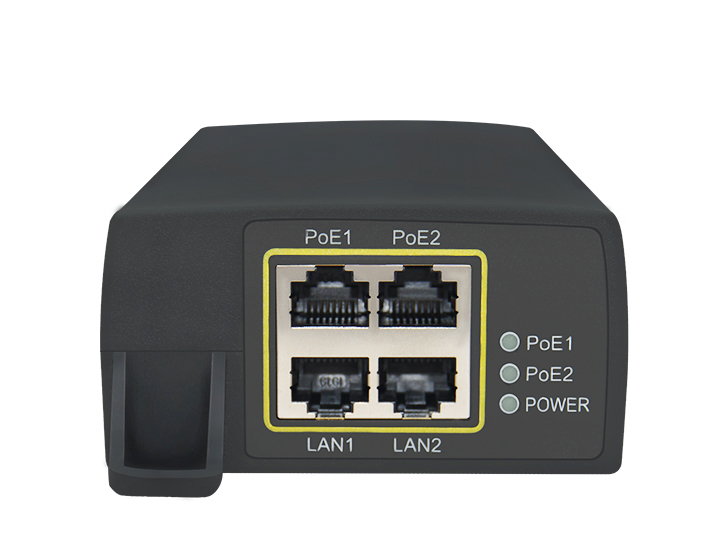

Ports conditionLAN Port*2, AC Input Port*1, PoE Output Port*2
Regulatory ComplianceIEEE802.3at/bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 30W Per Port, 60W Total

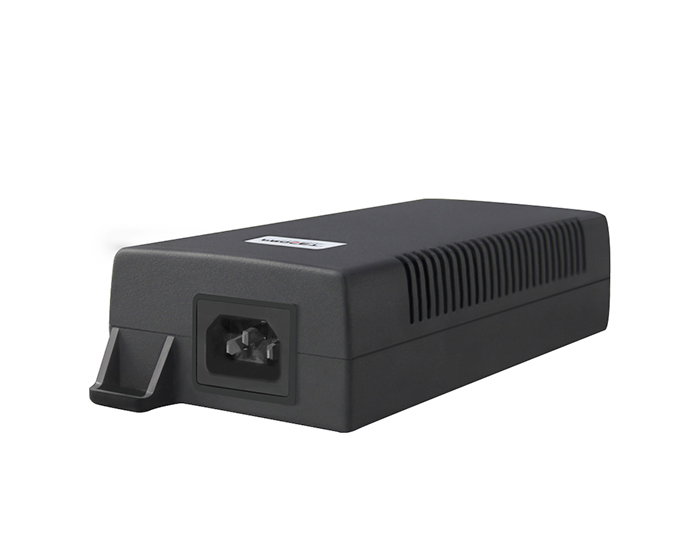

InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -30 to 55
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -30
to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 4KV
Line-Line 1.2/50us (8/20us): 2KV

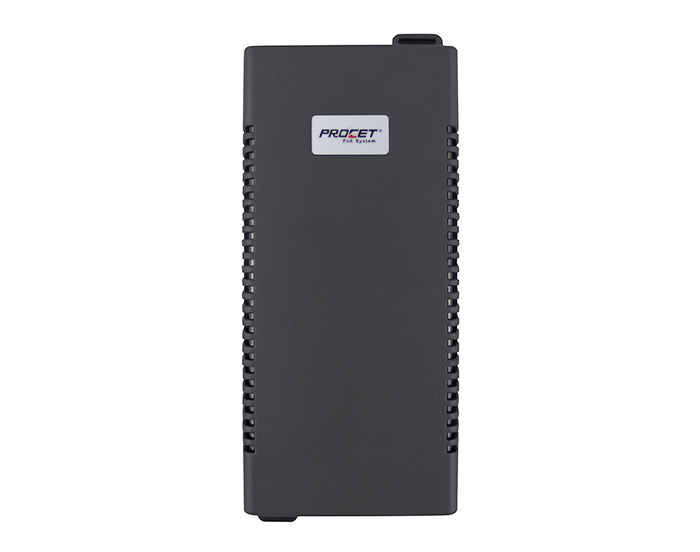

Mechanical CharacteristicsCase: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45
Size: 208mm X 85mm X 46mm
Weight: 462g
1.02lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Green
Safety ApprovalsCE


None

Standing Stock

Product Order Info.(Model)PT-PSE206GW-A
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
Volume: 0.031 m³
Packing: Export Carton
Pallet size: 110 x 110cm
