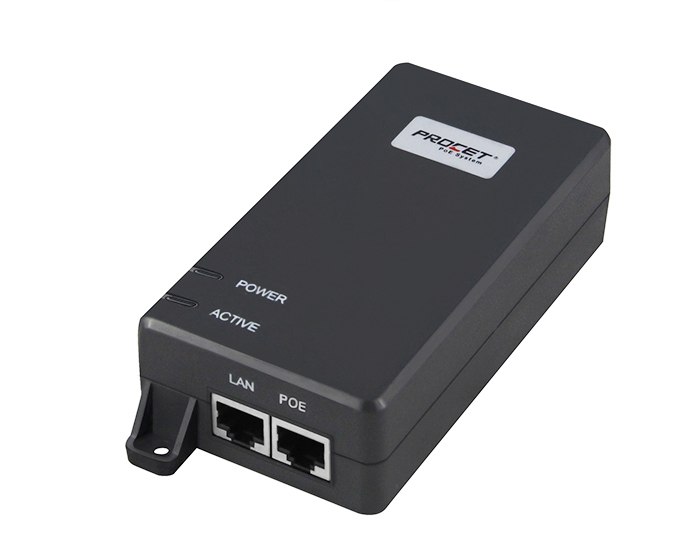

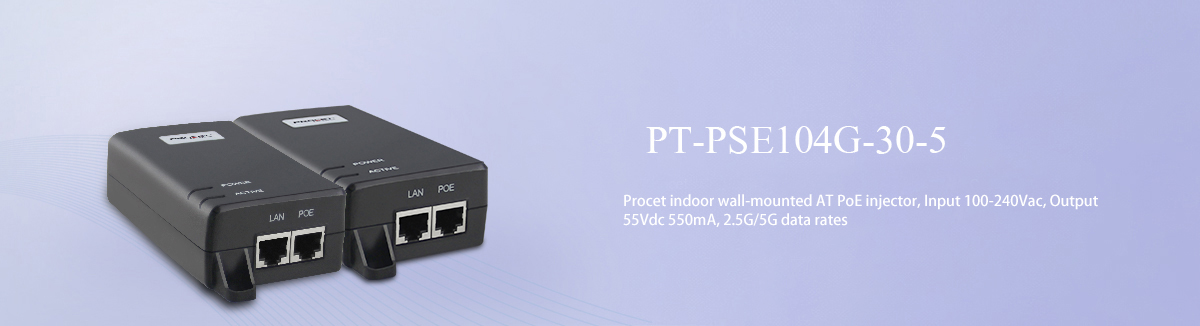

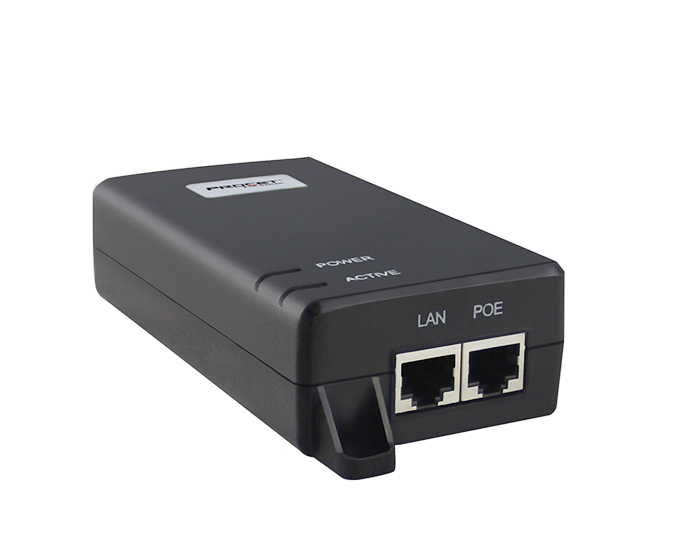

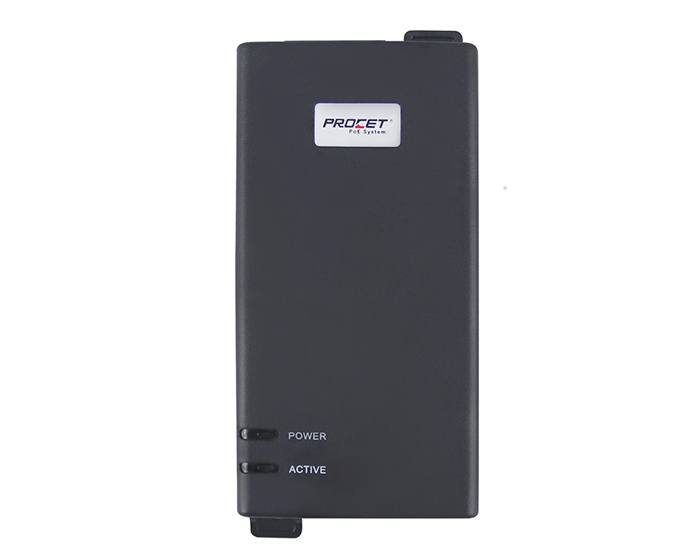

PT-PSE104G-30-5 is a single port midspan Injector with 2 Pair PoE up to 30 watts of powerat 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports not only 10/100/1000Mbps of data rates, but also 2.5GbE/5GbE NBase-T.Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices.
Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a wall mount bracket.
It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)
Specifications
Parameter | Description |
Key Features | High speed 2.5G/5G data rates Smaller in size but higher performance Own cUL/UL safety mark widely selling in North American AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs |
Part Number | PT-PSE104G-30-5 |
Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
Pass Through Data Rates | 10/100/1000 Mbps & 2.5/5GbE |
Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen |
Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency:50/60Hz Typ. |
Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 145.51mm X 65.8mm X 33.5mm Weight: 255g(0.56lb) |
LED Indicator | Power Indicator: Green PoE Load Indicator: Green @ ≤ 15.4W Blue @ > 15.4W ≤ 30W |
Safety Approvals | cUL/UL, CE, FCC |
Standing Stock
Product Order Info.(Model) | PT-PSE104G-30-5 |
Stock Quantity | 200PCS |
Warehouse Location | Dongguan China |
Sample Delivery Time | Within 24H |
Bulk Stock Delivery Time | Within 48H |
Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
