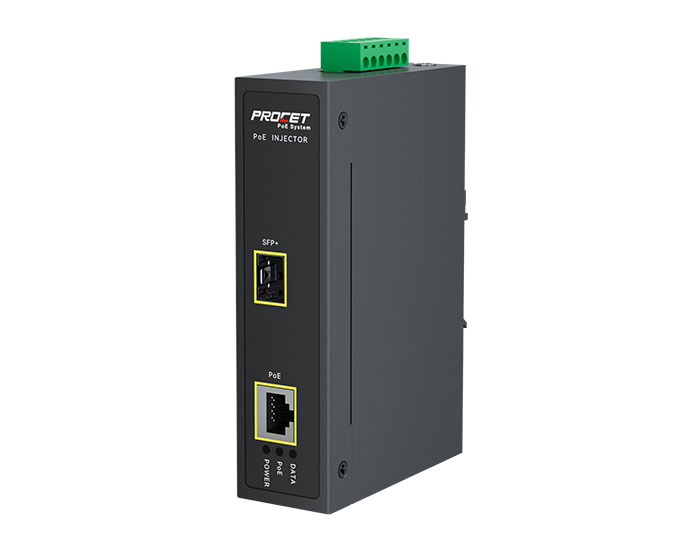

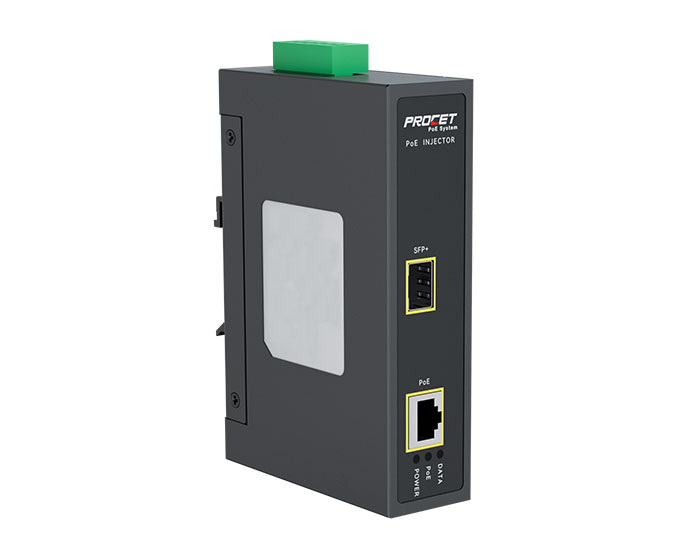

PT-PSE105GBS-D-10 DIN-rail 10G SFP PoE Injector with PoE function. The single PoE output port delivers 1.75A up to 95W(max) power for remote PDs over 4 pairs. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/bt PDs. Such as PTZ cameras,wireless APs, base stations, and other PoE-powered devices which need high power watts. Protecting non-PoE powered devices.

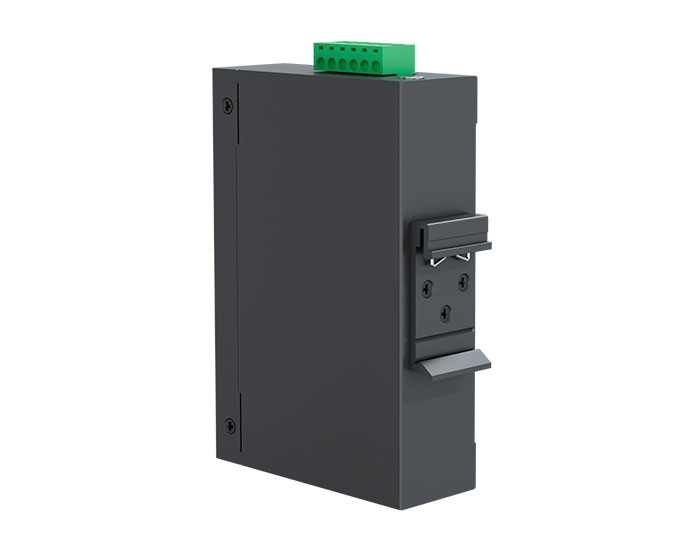

RJ45 port supports 100/1000Mbps, 2.5G/5G/10GbE NBase-T, while the fiber slot only supports 10GE SFP+ of optical module. Enclosed in an IP40 high-impact metal case with a DIN Rail mount bracket, designed for indoor use but can work outdoors by covering it with a waterproof case. It works with an input voltage of 50-57Vdc and operates under -40°C to +65°C. For planning purposes, the effective distance is 100 meters over Cat6 cables.
Specifications
Parameter | Description |
Model | PT-PSE105GBS-D-10 |
Input | 50-57Vdc 2.0A |
Output | 48-55Vdc 1750mA |
Power Pins | 4/5(+), 7/8(-) & 3/6(+), 1/2(-) |
PoE Standard | IEEE802.3af/at/bt |
Data Speed | 100M/1000M/2.5G/5G/10G, 10G SFP+ |
Work Temp. | -40℃ to 65℃ |
Operating Humidity | 20%-80%,non-condensation |
Operating Altitude | Up to 5000M |
Storage Temp. | -40℃ to 85℃ |
Storage Humidity | 10%-90%,non-condensation |
Network Protocol | IEEE802.3u/ab/bz/an IEEE802.3ae |
Regulatory Compliance | CE FCC |
IP Rated | IP40 |
Class Level | Class 8 |
Dimensions & NW | 144.5mm×95mm×35.4mm (485g) |
EMC | EN 55032:2015/A11:2020 |
EN 55035:2017/A11:2020 | |
Standard | IEEE802.3u 100Base-Tx Fast Ethernet |
IEEE802.3ab 1000Base-T Gigabit Ethernet | |
IEEE802.3an 10GBase-T 10Gigabit Ethernet | IEEE802.3ae 10G SFP+ Fiber 10Gigabit Ethernet | |
Interface | PoE OUT*1,SFP IN*1,DC IN*1,GND*1 |
Mechanical Characteristics | Case:Metal |
Color: Black | |
IP rated:IP40 | |
Dimensions: 144.5mm×95mm×35.4mm | |
Net Weight:485g |
