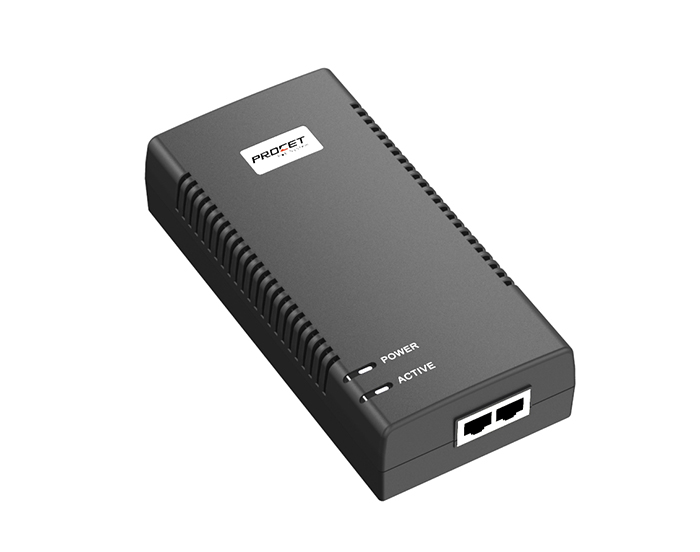

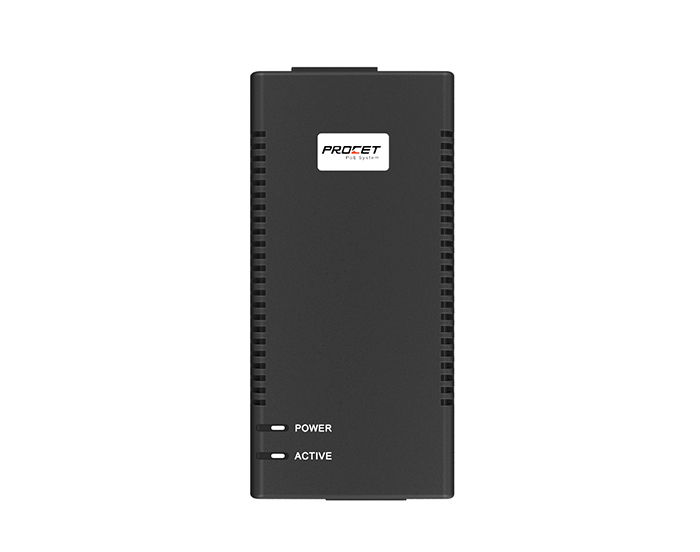

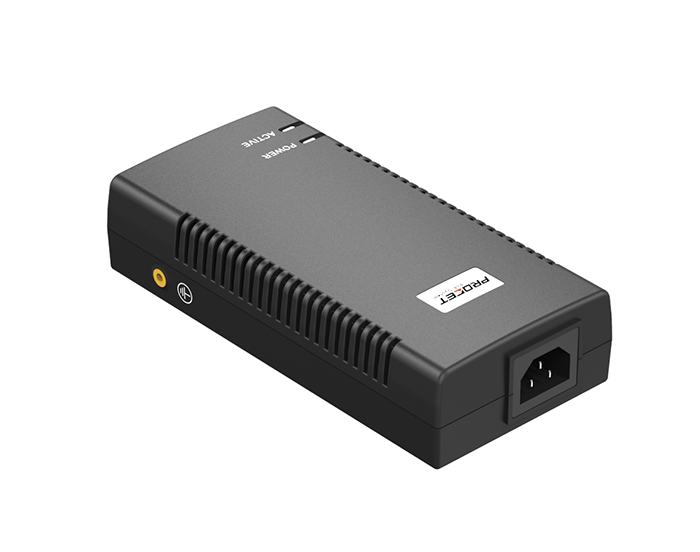

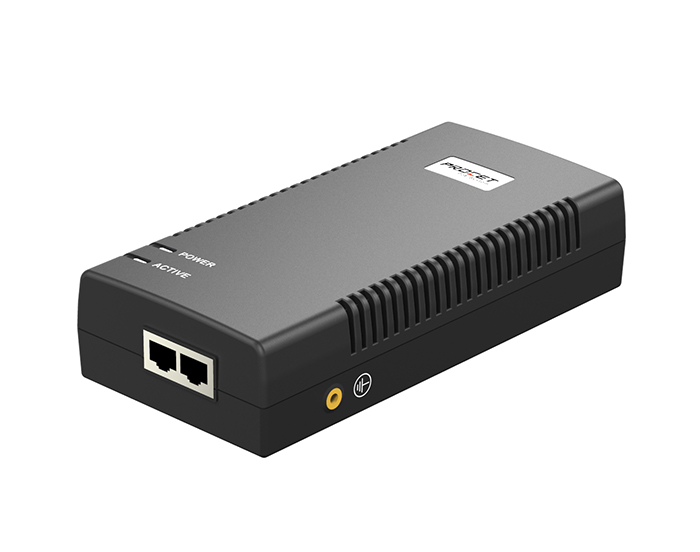

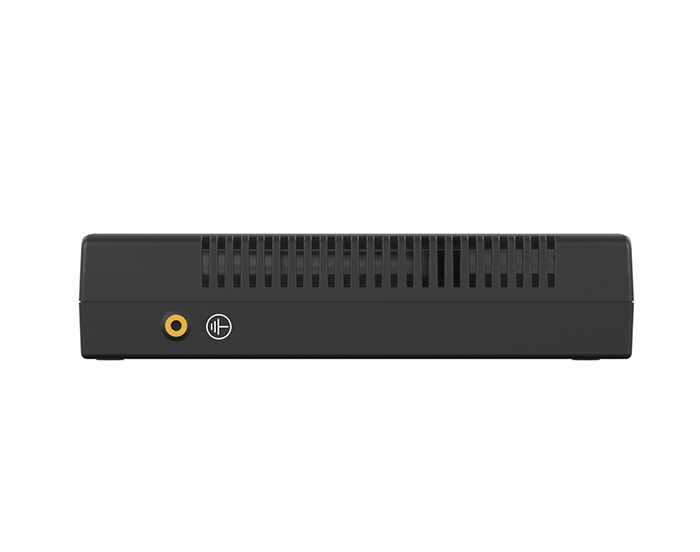

PT-PSE106GBR-10 90W 10G PoE Injector with 4 Pair PoE up to 90 watts of power at 55 VDC at 1.64 amp.
Designed for powered 90W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies to IEEE802.3bt and backward compatible with IEEE802.3af/at standard. It supports not only 10/100/1000Mbps of data speed,but also 2.5GbE/5GbE/10GbE NBase-T. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 plastic case, designed for indoor use. It operates with input voltage of 100-240Vac 2.0A 50/60Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | IEEE802.3AF/AT/BT standard 10GbE |
| Part Number | PT-PSE106GBR-10 |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3af/at/bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 2.5/5/10GbE |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc Output Power Current: 1640mA User Port Power: 90W Guaranteen |
| Input | AC Input Voltage: 100 to 240 Vac AC Input Current: 1.5A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| Surge Protection | AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 178.71mm X 85mm X 41mm Weight: 500g（1.10lb） |
| Safety Approvals | CE/FCC |
Standing Stock
| Product Order Info.(Model) | PT-PSE106GBR-10 |
| Stock Quantity | 200PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 18Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
