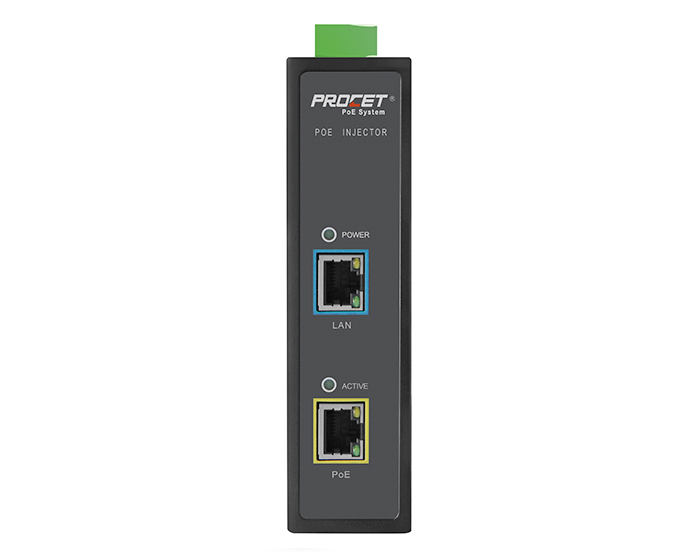

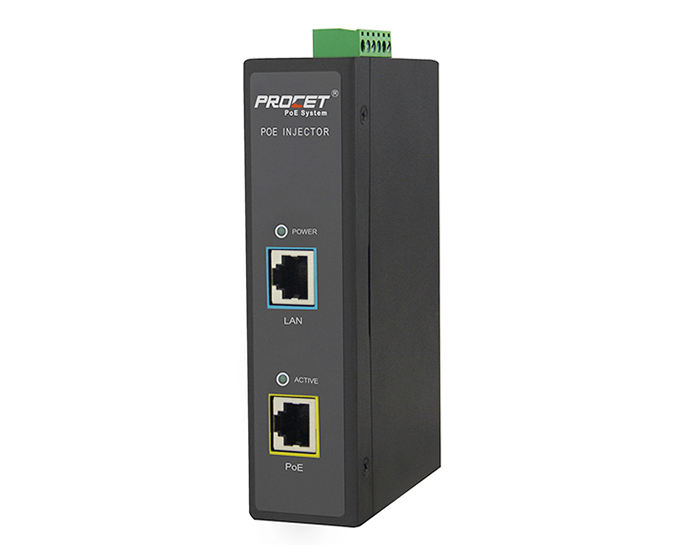

PT-PSE105G-E-10 Din-rail 10G PoE Injector

PT-PSE105G-E-10 is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55Vdc, at 0.55Amp with 6Kv surge protection.


Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. It supports not only 10/100/1000Mbps of data rates, but also 2.5GbE/5GbE/10GbE NBase-T. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.


Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates under -40℃ to +65℃,  For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.



  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key   FeaturesIndustrial PoE can be outdoor use by covered with waterproof case
Surge protection at PoE port
High speed 10G data rates
12-48VDC input make it possible for solar application
DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40   to 65
Diagnostic LEDs
Part NumberPT-PSE105G-E-10
Ports   conditionLAN Port*1, PoE Output Port*1, DC input Terminal Block *1
Regulatory   ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through   Data Rates10/100/1000 Mbps & 2.5/5/10GbE
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 55Vdc
User Port Power: 30W Guaranteen
InputDC Input Voltage: 12 to 48 Vdc
DC Input Current: 4.0A
Working   EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge   ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical   CharacteristicsCase: Metal
Color: Black

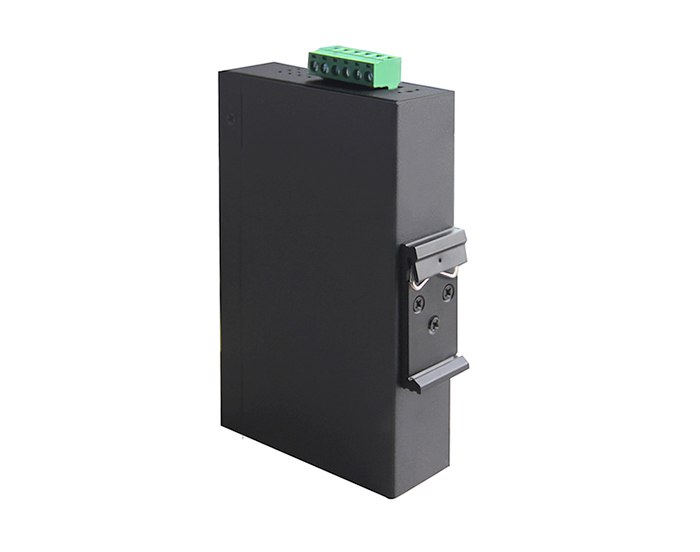

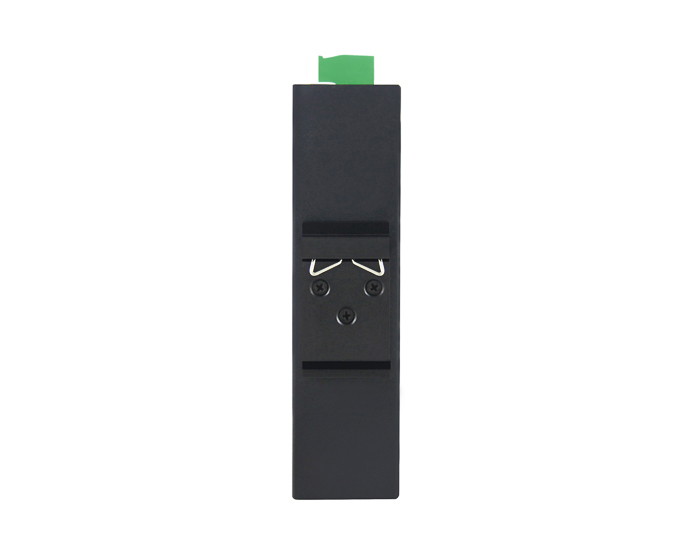

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 144.5mmX 95mmX 35.4mm
Weight: 485g(1lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
Warranty2 year
Safety   Approvals


None

Standing Stock

Product Order Info.(Model)PT-PSE105G-E-10
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.:20Kgs
Volume:0.03 m³
Packing: Export Carton
Pallet size:110 x 110cm
