30W PoE Injector

Home >> Products >> 30W PoE Injector

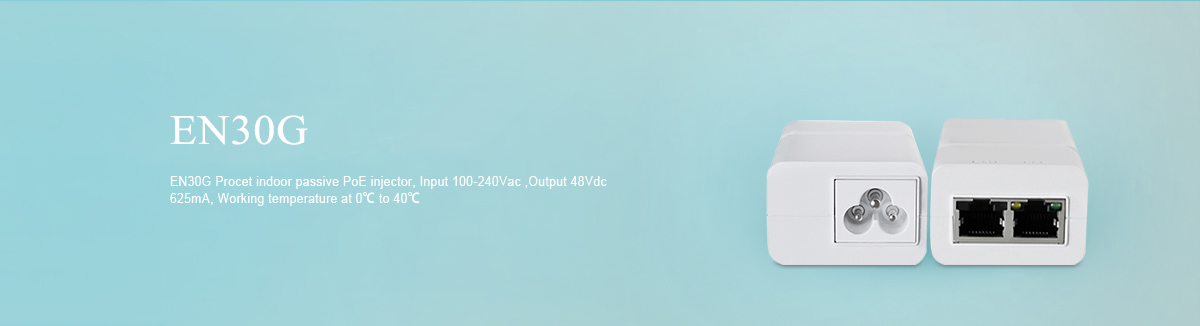

EN30G 2 Pairs 30W PoE Injector

EN30G is a single port midspan Injector with 2 Pair output to 30watts of power at 48Vdc, 0.625mp.


Designed for the passive powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.


Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesSingle-port
10/100/1000Mbps
Input 100-240Vac 1.0A 50/60Hz
output: 52Vdc. 0.58A 30W
Power pin: 4/5+,7/8-
Power cable  with US/EU optional
AC input: 3wire
Part NumberEN30G
Ports conditionLAN Port*1, PoE Output Port*1,AC input port*1
Regulatory Compliancepassive
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-)
Output Power Voltage: 48Vdc
User Port Power: 30W Guaranteen
InputInput Voltage: 100-240Vac
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: White
Mounting: Wall-plug
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 92*51*32mm
Weight: 130g(0.35lb)
LED Indicator

Power Indicator: Yellow

PoE Load Indicator: Green

Warranty2 year
Safety ApprovalsCE, FCC


None

Standing Stock

Product Order Info.(Model)EN30G
Stock Quantity500 PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery Timewithin 2-3 weeks
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty:40pcs/carton
G.W.:12Kgs
Volume:0.055 m³
Packing: Export Carton
Pallet size:110 x 110cm
