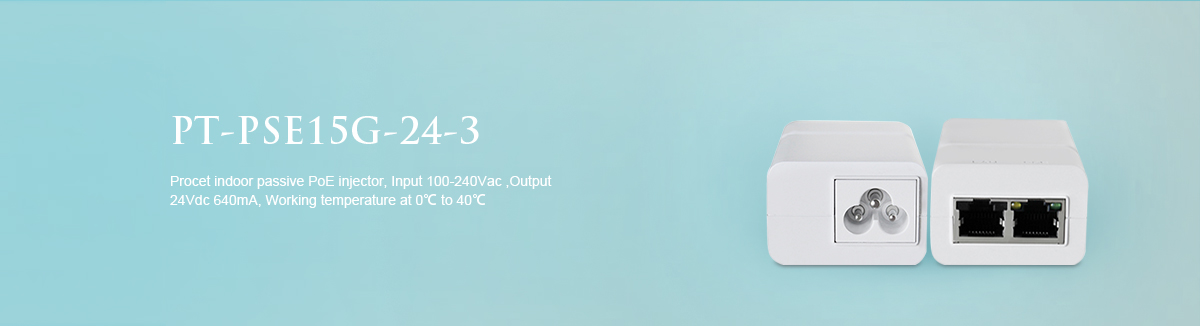

EN15G-24-3 15W Indoor PoE Injector

EN15G-24-3 is a single port midspan Injector with 2 Pair output to 15 watts of power at 24Vdc, 0.64Amp.

Designed for the passive powered 15W PoE Powered Devices (PDs), such as IP Cameras,wi-reless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesSingle-port
Input 100-240Vac 0.5A 50/60Hz
output 24Vdc 0.64A  15W
Power pin: 4/5+,7/8-
Power cable  with US/EU optional
AC input: 3 wire
Part NumberEN15G-24-3
Ports conditionLAN Port*1, PoE Output Port*1AC inout *1
Regulatory Compliancepassive
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-)
Output Power Voltage: 24Vdc
User Port Power: 15W Guaranteen
InputInput Voltage: 100-240Vac
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: White
Mounting: Wall-plug
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 85*46*30mm
Weight: 100g(0.27lb)
LED Indicator

Power Indicator: Yellow

PoE Load Indicator: Green

Warranty2 year
Safety ApprovalsCE, FCC

Install Video


Standing Stock

Product Order Info.(Model)EN15G-24-3
Stock Quantity500 PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery Timewithin 2-3 weeks
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty:40pcs/carton
Volume:0.055 m³
Packing: Export Carton
Pallet size:110 x 110cm
