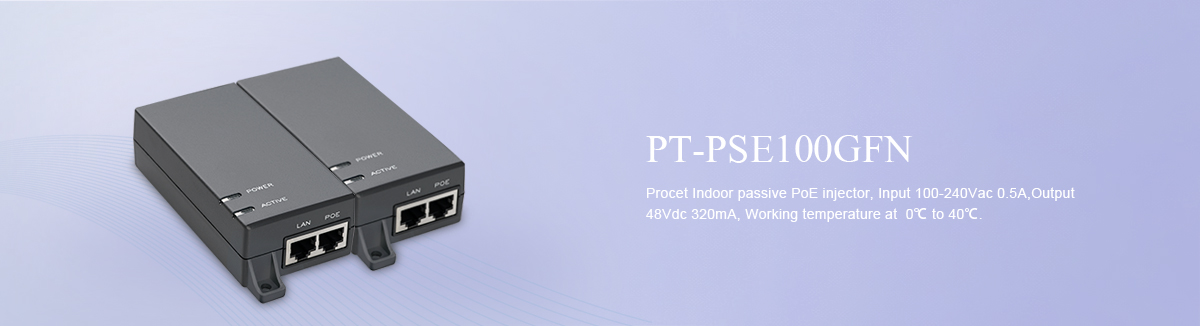

PT-PSE100GFN Economy Passive 48V output PoE injector

PT-PSE100GFN is a single port  Passive PoE injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32 amp.


Designed for the powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at devices.


Enclosed in an IP40 fire retardant plastic case, designed for indoor use installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesOutput: 48Vdc, 320mA, 15.4W
Transmission Rate: 10/100/1000Mbps
Power Pin: 4/5(+),7/8(-)
Part NumberPT-PSE100GFN
Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance

Passive

RoHS Compliance

WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 48Vdc
User Port Power:
30W Guaranteen
InputInput Voltage: 100-240Vac
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: plastic
Color: Black
Mounting:Wall-mounted
IP Rated: IP40

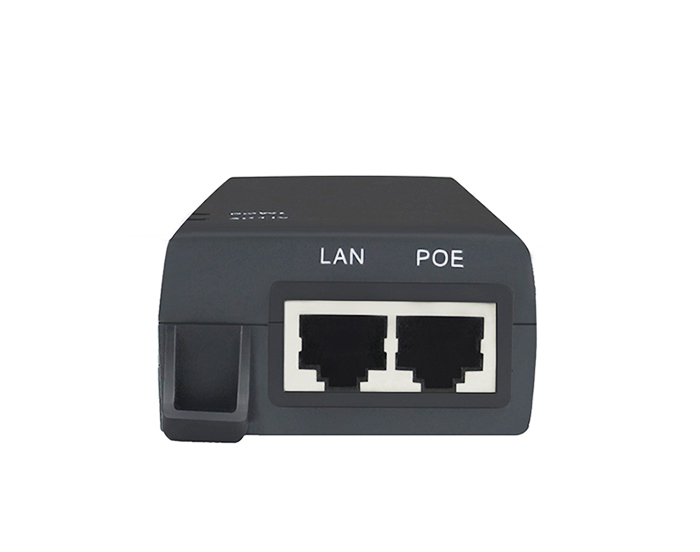

Connectors: Shielded RJ-45*2
Size: 134mmX 56mmX 33mm
Weight: 170g(0.37lb)

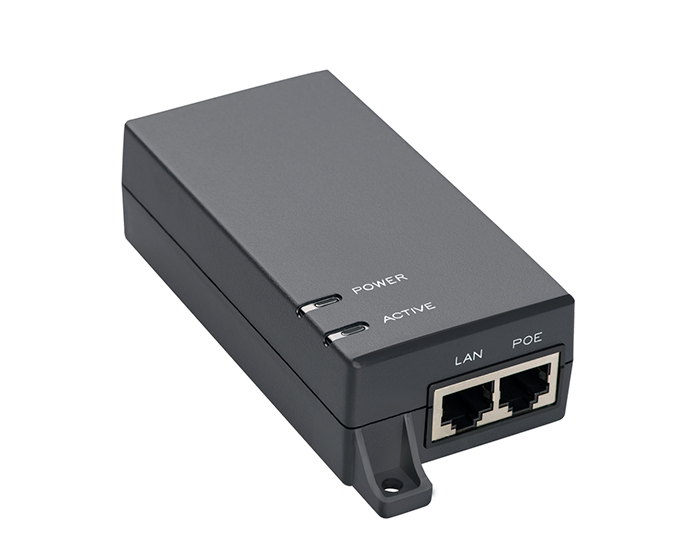

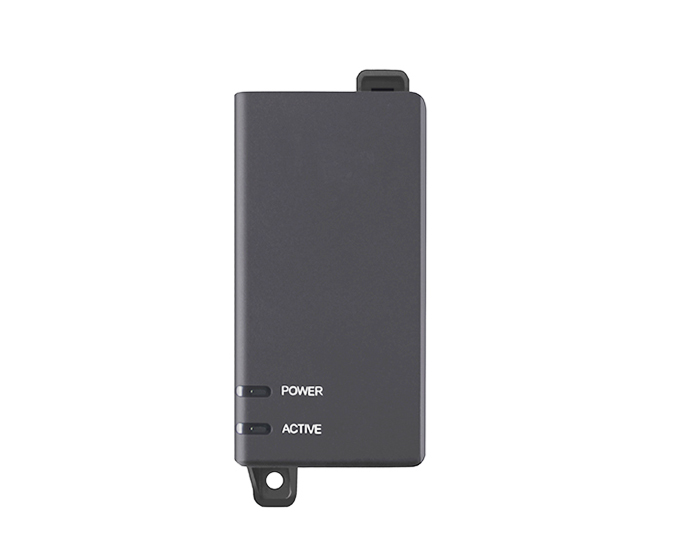

LED IndicatorPower Indicator: Green
PoE Load Indicator: Green
Safety ApprovalsCE, FCC
