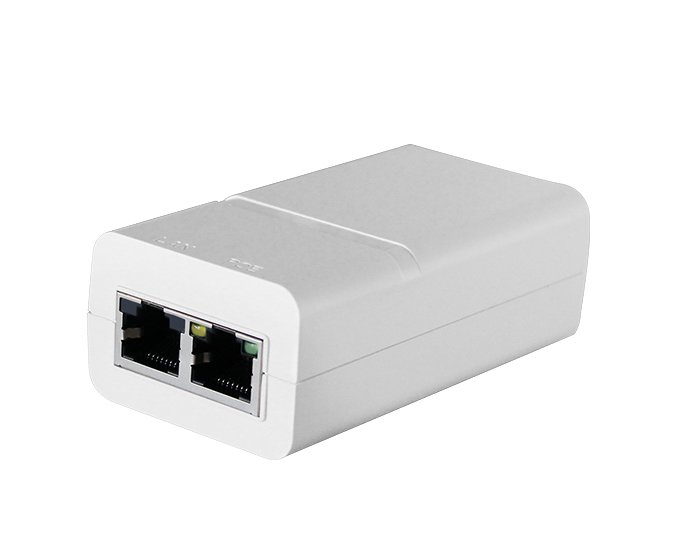

EN15G-2 in developing is a 15W Passive PoE Injector with 2 Pair output to 15watts of power at 48V, 0.32Amp.
Designed for the passive powered 15W PoE Powered Devices (PDs), such as IP Cameras,wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. AC Input 2 wire Passive PoE The effective distance limitation of 100 meters over Cat5e/Cat6 cables
Specifications
| Parameter | Description |
| Key Features | Single-port 10/100/1000Mbps Input 100-240Vac 0.5A 50/60Hz output 48V 0.320A 15W Power pin: 4/5+,7/8- Power cable with US/EUoptional AC input: 2 wire |
| Part Number | EN15G-2 |
| Ports condition | LAN Port*1, PoE Output Port*1，AC inpout port *1 |
| Regulatory Compliance | passive RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Output Power Voltage: 48V User Port Power: 15W Guaranteen |
| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

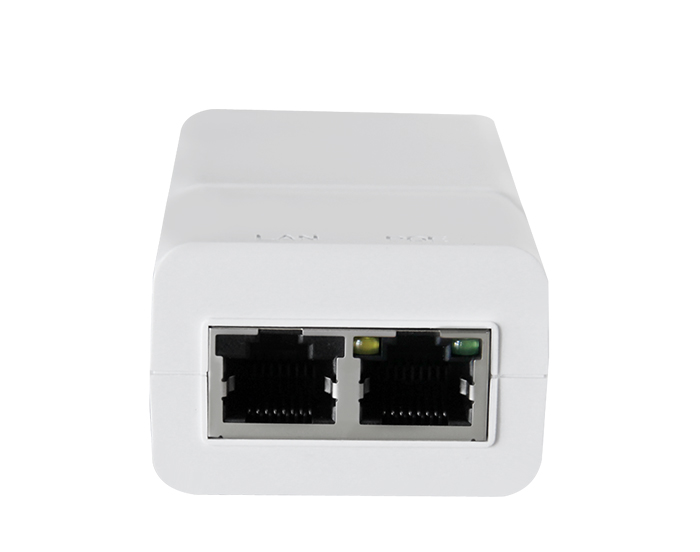

| Mechanical Characteristics | Case: Plastic Color:White Mounting: Wall-plug IP Rated: IP40 Connectors: Shielded RJ-45*2 Size:85*46*30mm Weight: 100g(0.27lb) |
| LED Indicator | Power Indicator: Yellow PoE Load Indicator: Green |
| Safety Approvals | CE, FCC |
Standing Stock
| Product Order Info.(Model) | EN15G-2 |
| Stock Quantity | 500 PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | within 2-3 weeks |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty:40pcs/carton G.W.:9.4Kgs Volume:0.055 m³ Packing: Export Carton Pallet size:110 x 110cm |
